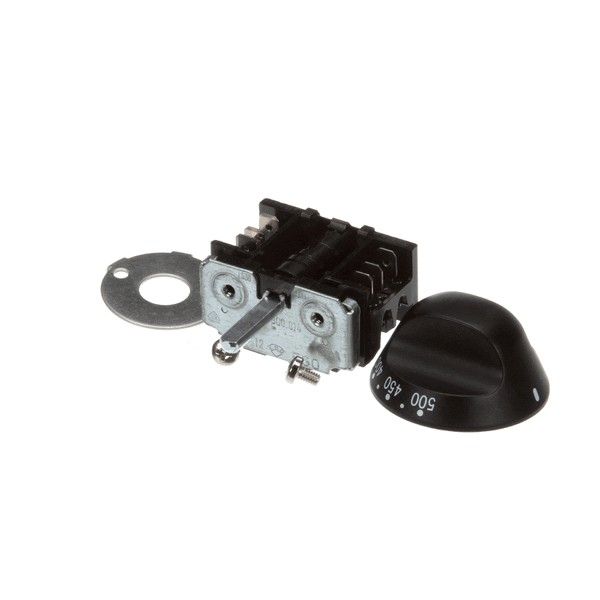

Moffat M239307 Rotary Switch Kit E20M

SKU: M239307 1-M239307 Brand:
Moffat
Availability:
In Stock
(0)
$103.24 Price reduced from $117.95
Save $14.71
Have a Question? +1 (866) 863-0907

Specifications:

  • Type: Rotary Switch Kit

Description

The Moffat M239307 Rotary Switch Kit E20M is an electrical part that is operated by the rotating switch shaft to change the operating position. It operates by sending an electrical current to certain circuits depending on the setting. This rotary switch kit is attached to the equipment control panel, placed behind the front interface, to be used by the user. The internal contacts fit into specific terminals to control the flow of power in different modes. It is provided as a kit, which consists of parts to be installed and connected in compatible assemblies of ovens.

Step1: Disconnect power and verify zero voltage to prevent electrical shock before servicing unit.

Step2: Remove control panel cover and note existing wiring positions on rotary switch secure workspace.

Step3: Disconnect wires from faulty switch and remove mounting hardware carefully tag wires for reference.

Step4: Install new rotary switch kit aligning terminals as per diagram match wiring diagram.

Step5: Secure switch, reconnect wiring firmly, reinstall panel, restore power and test functions ensure proper function.

  • What maintenance is required for the Moffat M239307 Rotary Switch Kit?

    Keep the switch area clean and ensure all wiring connections remain firmly attached. Confirm the knob rotates smoothly between positions. Verify equipment functions respond immediately to selection changes and operation continues accurately during repeated switching cycles.

  • What are common issues with the Moffat M239307 Rotary Switch Kit?

    • Switch not changing settings.
    • Response delay after turning.
    • Operation stopping intermittently.
    • Control input not registering.
