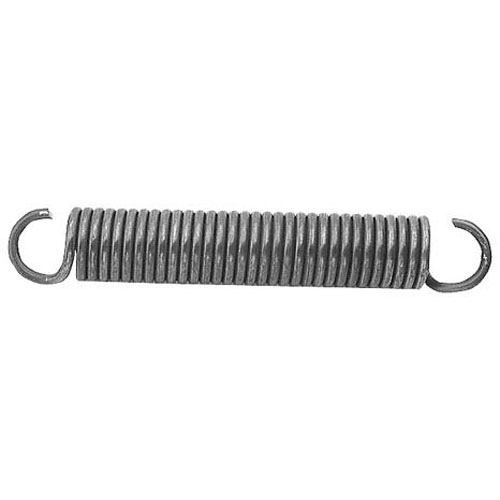

Vulcan Hart 00-404053-00001 Range Door Spring 135" Wire 6" Long 34 Coils

SKU: 00-404053-00001 1-00-404053-00001 Brand:
Vulcan Hart
Availability:
In Stock
(0)
$11.44 Price reduced from $13.60
Save $2.16
Have a Question? +1 (866) 863-0907

Specifications:

  • Door Spring, Door Spring, .135" Wire, Total Length 6",
  • 34 Coils, Spring Coil .841" Dia Od X 4.484" Long,
  • Hooks Face Same Direction.
  • Orig Has Yellow Paint On It.
  • Vulcan 148L, 148Lc, 160L, 160L77R, 160Lc, 24L, 260L, 260Lc,
  • 260Lcc, 36Fl77R, 36L, 36L77R, 36Lc, 481L, 481Lc, 48L,
  • 60Fl77R, 60L, 60L77R, 60Lc, 60Lcc, E24L, E36L, E48L, E60L,
  • Eg160, Eg36, Mg12

Description

The Vulcan Hart 00-404053-00001 Range Door Spring is a part that can be used to ensure that the door moves in commercial settings. This spring is a 135" wire with a length of 6" and 34 coils to allow it to be controlled as the door opens and closes. It is usually used in foodservice kitchens where there is a need to have uniform equipment optimal level. The spring is part of the range assembly, which assists in keeping the door in line and provides a smooth operation when used frequently.

Dimensions:

  • Weight: 0.5 lbs
  • Length: 6 in
  • Height: 0.88 in
  • Width: 0.88 in

HOBART:

104053-1 404053-00001 404053-1

VULCAN HART:

104053-1 113342-1 404053-00001 404053-1 413342-1 VH104053-1 VH113342-1 VH404053-1 VH413342-1

Step1: Disconnect power or gas supply to the unit before servicing the door assembly.

Step2: Support the oven door securely to prevent sudden movement when removing the old spring.

Step3: Remove the damaged spring carefully using pliers or a spring removal tool.

Step4: Hook the new door spring into the original mounting points, ensuring correct tension and alignment.

Step5: Check that the door opens and closes smoothly without sagging or binding.

  • What maintenance is required for the Vulcan Hart 00-404053-00001 Door Spring Coils?

    Inspect the door spring regularly for tension loss, rust, or coil deformation. Clean debris and grease buildup to ensure smooth movement and reduce wear. Replace if stretching or cracking is observed. Proper alignment helps maintain safe and consistent door operation.

  • What are common issues with the Vulcan Hart 00-404053-00001 Door Spring Coils?

    • Loose tension causing improper door closing.
    • Coil deformation leading to uneven operation.
    • Rust buildup restricting smooth spring movement.
