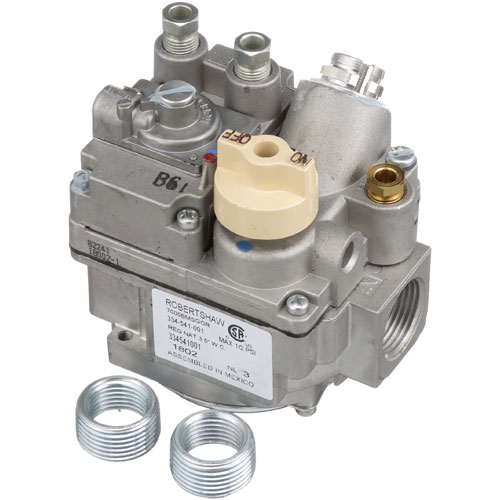

Vulcan Hart 00-412196-00G17 3/4" FPT Natural Gas Safety Bleed Gas Actuator with Pilot, 300,000 BTU

SKU: 00-412196-00G17 1-00-412196-00G17 Brand:
Vulcan Hart
Availability:
In Stock
(0)
$253.61 Price reduced from $397.50
Save $143.89
Have a Question? +1 (866) 863-0907

Specifications:

  • [ Nat Gas ] [ Size 3/4" Fpt ] [ Nat Safety ][ 3.5"Wc ]
  • [Bleed Gas Actuator] [ Width 4"] [ Brand Rsw ]
  • 1/4" Cct Pilot Out Only, W/Slotted Thermopile Magnet
  • 3/4" X 1/2" Reducer Bushings, Model 7000 Bmsgor
  • Bleed Gas Ports 1/4" Cct, 300,000 Btu
  • **Use # 51-1470 To Convert To Lp Gas.**
  • Thermopile, H231, T-103, # 51-1122, Screw In Type, 3/8-32
  • Brass Pile Holding Nut, 3/8-38 Thread For Magnet, 750Mv,
  • 500Mv Under Load.
  • Southbend Fryer Series: 14,18.
  • Vulcan Hart Fryer 7891G, 7892G, Hf91G, Hf92G.
  • Wolf Fryer Ss-Wtf-42, Wtf-42.

Description

The Vulcan Hart 00-412196-00G17 Natural Gas Safety Bleed Gas Actuator with Pilot serves commercial fryers by maintaining safe gas flow operations. The safety actuator provides 3/4" FPT connection to handle 300,000 BTU and incorporates a thermopile and magnet system for flame detection and ignition security. The safety bleed control function of this actuator works with Vulcan Hart along with Southbend and Wolf commercial fryers. This part improves safety by stopping gas leaks while enhancing energy efficiency and providing trustworthy operation that is vital for high-quality kitchen equipment and risk reduction when working in demanding cooking areas.

Dimensions:

  • Weight: 2.1 lbs
  • Length: 4.5 in
  • Height: 2.5 in
  • Width: 2.5 in

GARLAND:

1092700 GL1092700

HOBART:

00-410841-00001 00-412196-00G11 00-412196-00G13 110841-1 410841-00001 410841-1 412196-00G11 412196-00G13 412196-00G17 412196-G11 412196-G13 412196-G17

PITCO:

P5045642 P5045659 PTP5045642 PTP5045659

U-LINE:

334-541-001 700-886

VULCAN HART:

00-410841-00001 00-412196-00G11 00-412196-00G13 110841-1 410841-00001 410841-1 412196-00G11 412196-00G13 412196-00G17 412196-G11 412196-G13 412196-G17 VH110841-1 VH410841-1
