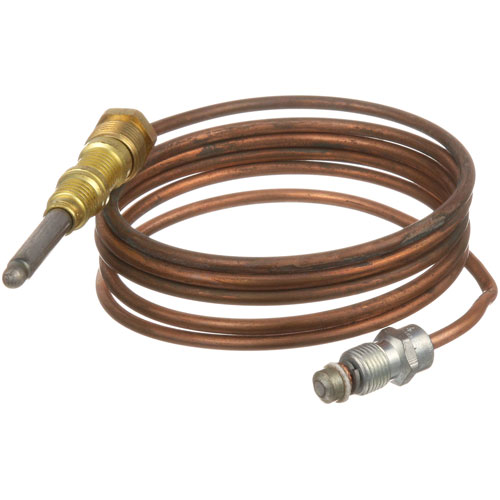

Hobart 00-412788-00002 Thermocouple 48''

SKU: 00-412788-00002 1-00-412788-00002 Brand:
Hobart
Availability:
In Stock
(0)
$29.83 Price reduced from $38.75
Save $8.92
Have a Question? +1 (866) 863-0907

Specifications:

  • 1900 Series Heavy Duty Thermocouple 48" Long.20-30 Mv
  • Coaxial Thermocouple Threads = 11/32"-32
  • Market Forge Skillet Where Applicable
  • Southbend Hdg-(36, 36M, 36Re, 48, 48M, 48Re, 60, 60M, 60Re,
  • 72, 72M, 72Re)
  • Vulcan Hart Heavy Duty Range/Oven Gh3/72, Gh3/72C, Gh3/72S,
  • Gh30, Gh30C,
  • Gh45, Gh45/72, Gh56, Gh56S, Gh6, Gh60, Gh60/45, Gh60/72,
  • Gh6045C, Gh60T, Gh60T/45, Gh60T/72, Gh6C, Gh6S, Gh6T45C,
  • Gh72, Gh72/45, Ghm3/72, Ghm30, Ghm30C, Ghm45, Ghm45/72,
  • Ghm56, Ghm6, Ghm60, Ghm60/45, Ghm60/72, Ghm60T, Ghm60T/45,
  • Ghm60T/72, Ghm72, Ghm72/45

Description

The Hobart 00-412788-00002 Thermocouple 48" measures the temperature at the flame and transforms the changes in heat into an electrical signal that is interpreted by the control system. The signal created by the equipment is used to detect the presence of the flame and regulate the flow of gas in its operation. The 48-inch lead length facilitates the routing of the sensing tip to the operator connection point. This is applied in foodservice equipment, where the temperature input is required to monitor ignition.

Dimensions:

  • Weight: 0.3 lbs
  • Length: 3 in
  • Height: 1 in
  • Width: 2.5 in

HOBART:

00-412788-00004 00-906955-00048 412788-00002 412788-00004 412788-2 412788-4 906955-00048 906955-48 HOB00-412788-00002 HOB00-412788-00004 HOB00-906955-00048 HOB412788-00002 HOB412788-00004 HOB412788-2 HOB412788-4 HOB906955-00048 HOB906955-48

MARKET FORGE:

-10-4758 10-4758 MAR10-4758

SOUTHBEND:

-1182565 1182565 SOU1182565

U-LINE:

1900-048

VULCAN HART:

-00-412788-00002 -00-412788-00004 -00-906955-00048 00-412788-00004 00-412788-00048 00-906955-00048 412788-00002 412788-00004 412788-00048 412788-2 412788-4 412788-48 906955-00048 906955-48 VH00-412788-00002 VH00-412788-00004 VH00-412788-00048 VH412788-00002 VH412788-00004 VH412788-00048 VH412788-2 VH412788-4 VH412788-48 VH906955-00048

Step1: Switch off gas and electrical supply, then allow the unit to cool completely before servicing.

Step2: Open the access panel and detach the old thermocouple from the control valve and pilot bracket.

Step3: Route the new thermocouple along the original path, keeping it free from sharp bends or pressure points.

Step4: Secure the probe tip in direct pilot flame contact and tighten all connections firmly.

Step5: Restore gas supply, light pilot, and verify stable flame retention and proper shutdown response.

  • What maintenance is required for the Hobart 00-412788-00002 Thermocouple?

    Inspect the thermocouple regularly for heat damage, corrosion, or loose connections that can affect millivolt output. Keep the sensing tip clean from grease and carbon buildup to maintain accurate flame detection. Ensure secure mounting and proper alignment with the pilot flame. Replace if readings become unstable or response is delayed to maintain better gas operation.

  • What are common issues with the Hobart 00-412788-00002 Thermocouple?

    • Weak or inconsistent millivolt output causing shutdowns.
    • Pilot flame not properly detected by sensor tip.
    • Corrosion or heat fatigue reducing accuracy.
    • Loose or damaged electrical connections.
    • Carbon buildup on probe affecting signal strength.
