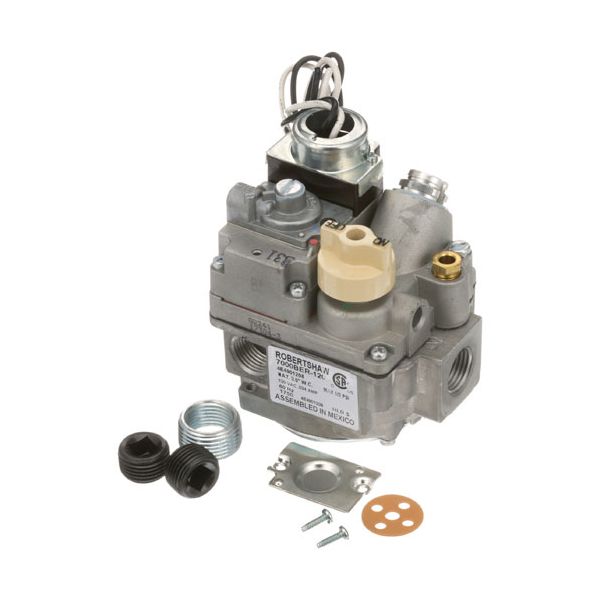

Hobart 00-840343-00001 Safety Control Valve NG 1/2" FPT IN X 3/4" FPT Out 120V
Special Price $216.60 Regular Price $333.75
In stock
SKU
00-840343-00001
Manufacturer:
The Hobart 00-840343-00001 Safety Control Valve NG 1/2" FPT IN X 3/4" FPT Out 120 V is used to manage the flow of natural gas with commercial cooking systems by responding to signals from the pilot assembly and thermocouple. It generates the input needed to keep the valve open and allow gas to reach the main burner system. If the pilot flame goes out or the signal is disrupted the valve automatically closes to stop further gas movement through the line. Its side outlet configuration channels gas to designated internal connections as part of the system gas control assembly and operating sequence during startup, shutdown, and heating cycles.
Dimensions
- Length: 5.75 In
- Width: 4.75 In
- Height: 3.5 In
- Weight: 2.282 lbs
Product Notes
- Nat Gas Safety, 1/2" Fpt In, 3/4" & 1/2" Out. W/ (2) 1/2"
- Side Outs W/ Plugs, 3/4" X 1/2" Reducer Bushings,
- 1/4" Cct Pilot Out, Uses Thermocouple.
- For Nat To Lp Gas Conversion Kit Use # 51-1470
- Model 7000 Ber-120, 120 Vac Actuator, Mfg# 700-452
- Dean Fryer 1824/2424G, 1824G, 2424G, D20, D50,
- D50G, D50Gdd, D60, D60Gs, D80, Fpd65, Fphd65, Tb14
- Henny Penny Fryer 600, Og- 301,302,303
- Market Forge Oven 2500, 2700
- Gas Tilt Skillet 1500 1700,
- Southbend Kettle Kslg W/Standing Pilot. Oven X,Xs
- Vulcan Tilt Skillets Model E-30-C, E-30-O, E-40-C, E-40-O,
- G-30-C,G-30-O, G-40-C, G-40-O
