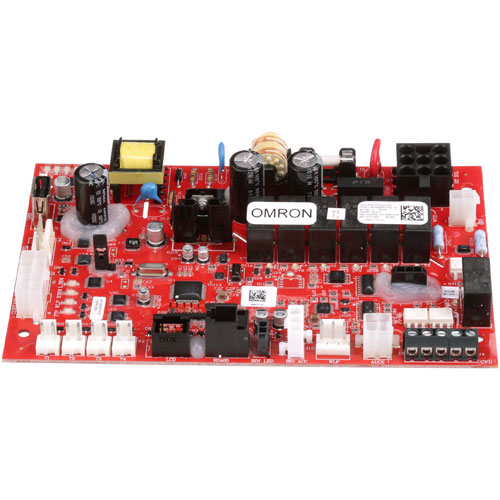

Manitowoc 000008309 Ice Machine Control Board
Description
Dimensions:
- Weight: 0.63 lbs
- Length: 8.5 in
- Height: 2 in
- Width: 6 in
This Part Fits the Following Models
4 modelsProduct Overview:
Electronic operation within selected Manitowoc commercial ice machines is managed by the Manitowoc 000008309 Ice Machine Control Board. This component is an OEM control board that forms part of the machine’s control system, where it coordinates operating functions and records operating data history. The board is associated with Manitowoc Indigo ice machine applications and carries manufacturer part number 000008309.
Operating Cycle:
During the ice machine’s operating cycle, the control board coordinates the electronic functions required for the equipment to operate according to its control sequence. It processes system signals and manages the timing of related operating functions. The board also records operating data history as part of the machine’s electronic activity. Its exact role may vary according to the ice machine model and control configuration.
Control System Role:
Within the ice machine’s electronic system, the control board acts as the central component for managing operating functions. It coordinates signals between the machine’s control requirements and its operating sequence. The board’s role is focused on electronic operation rather than the physical formation of ice. Its control activity also contributes to the recording of operating data history.
Replacement Guidelines:
Replacement may be considered when the control board no longer performs its intended electronic functions or when the ice machine develops operating problems associated with the control system. The replacement should match the required manufacturer part number and equipment application. The available product information identifies 000008309 as a control board used with selected Manitowoc Indigo ice machines.
Common Failure Symptoms:
- Ice machine does not begin the expected operating cycle.
- Machine operation becomes inconsistent or incomplete.
- Expected electronic functions are not performed.
- The machine stops during an operating sequence.
- Operating data history may not be recorded correctly.
- The equipment may show control-related operating interruptions.
Equipment Compatibility:
The Manitowoc 000008309 Ice Machine Control Board is an OEM control component associated with selected Manitowoc Indigo ice machine applications. Verified model examples include I0600, I0870C, and I1106. It is also associated with previous part number MAN000009073. Confirm the exact machine model and applicable manufacturer parts information before selecting the replacement.
Technical Specifications:
Brand: Manitowoc Ice
Part Number: 000008309
Product Type: Ice Machine Control Board
MANITOWOC:
8309 MAN000008309 MAN8309
Step1: When installing the Manitowoc Ice Machine Control Board:
Step2: Disconnect power to the ice machine before starting any work.
Step3: Remove the front panel to access the control board compartment.
Step4: Disconnect wiring harnesses from the old control board, noting connections.
Step5: Unscrew and remove the old control board carefully.
Step6: Install the new board in the same orientation and secure with screws.
Step7: Reconnect all wiring according to the notes or schematic.
Step8: Restore power and test the machine for proper operation.
Step9: Damage gloves and follow safety guidelines to avoid electric shock.
-
What maintenance is required for the Manitowoc 000008309 Control Board?
Periodically inspect the control board for dust, moisture, and corrosion. Ensure all wiring connections are secure and clean. Avoid exposure to water or extreme temperatures, and power off the machine before servicing. Proper care assists prevent operational errors and ensures consistent ice production.
-
What are the common issues with the Manitowoc 000008309 Control Board?
- Failure to start or respond to inputs
- Erratic ice production cycles
- Display or indicator malfunctions
- Damage from moisture or electrical surges.
Customer Reviews
Write a Review
-
Cycle Control
New board controls timing and harvest sequence correctly.
