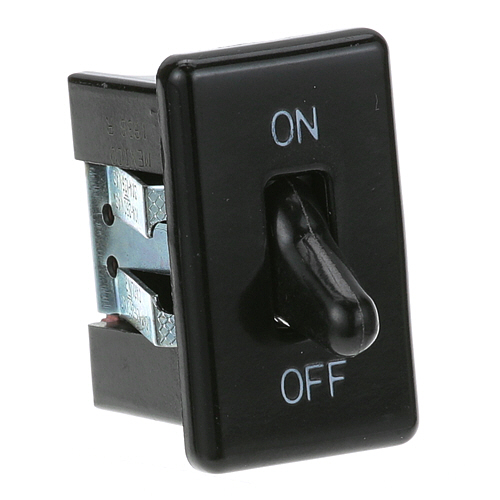

Lincoln 000715SP SPST Snap-In Switch 5/8" X 1-1/4"

SKU: 000715SP 1-000715SP Brand:
Lincoln
Availability:
In Stock
(0)
$19.66
Have a Question? +1 (866) 863-0907

Specifications:

  • [ Toggle Switch ] [ Fits Hole 5/8" X 1-1/4" ] [ "On/Off" ]
  • [ Spst ] [ Terminals 2 (Screws) ]
  • [ Amp/Volt 20A/125V,10A/250V ] [ Color Black]
  • Bunn-O-Matic Coffee Brewer Series: Ol, Ot, Rl, Rt, Rtf,
  • Vpr,Vps.
  • Urn Series: U3, Ucb.
  • Warmer: Shp, Shs. Series: Wx.
  • Glenco Coffee
  • Keating Fryer Bb, Cc, Ts.
  • Lincoln Oven
  • Market Forge Steamer
  • Star Fryer 403 With S/N 4034693 & After.
  • Steamer Hot Dog Steamer: 35S (S/N 35108615 & After),
  • Toastmaster Griddle 7A2
  • 36 (S/N 3600933 & After).

Description

The Lincoln 000715SP Snap-In Switch SPST operates by either connecting or breaking an electrical circuit when the actuator is pressed, so that current can either be passed or cut off to the load being connected during operation. It is installed in the control panel or housing of compatible equipment that has a panel opening of 5/8" by 1-1/4" in which the snap-in can be installed. This switch becomes a part of the electrical system to switch power to a particular function or component when it is in normal use.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 1 in
  • Height: 1.25 in
  • Width: 1 in

BUNN-O-MATIC:

01186-0000 01186.0000 011860000 1186 1186-0000 1186.0000 BU01186-0000 BU01186.0000 BU1186-0000 BU1186.0000

CECILWARE:

GML084A GML084F L084A L084F

FRYMASTER:

807-1413 8071413

INTEDGE:

L1014

KEATING:

004500 P35163L

LINCOLN:

350502

MARKET FORGE:

10-5003 S10-5003

MERCO:

000715

MIDDLEBY MARSHALL:

7A2S36

PRINCE CASTLE:

197-6 PC197-6

STAR MFG:

2E-Y3070 2ELS0037-002 SP-037-2 SP37-2 Y3070

STERO:

STA2E-Y3070 STAY3070

Step1: Turn off electrical power at breaker, check zero voltage with tester.

Step2: Remove access panel and safely disconnect wiring from old switch, labeling each terminal for reassembly.

Step3: Depress snap tabs and remove faulty switch from mounting bracket without damaging housing.

Step4: Insert new snap-in switch, ensure correct orientation, and press firmly until fully seated and secure.

Step5: Reconnect wiring according to labels, restore power at breaker, and test switch operation.

  • What maintenance is required for the Lincoln 000715SP Snap-In Switch?

    Keep switch contacts clean and dry, inspect wiring connections for looseness, and ensure housing is free of dust or debris. Periodic checks prevent arcing and ensure accurate operation. Avoid moisture exposure and use proper insulation.

  • What are common issues with the Lincoln 000715SP Snap-In Switch?

    • Contact wear causing intermittent switching.
    • Loose terminals leading to power loss.
    • Mechanical sticking of snap-in actuator.
    • Overheating from overload current.
    • Corrosion in humid conditions.
    • Misalignment during installation.
    • Electrical arcing at contacts.
