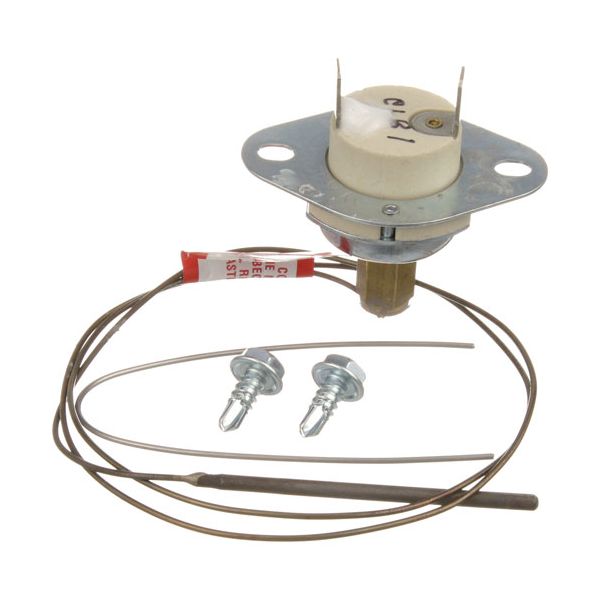

Keating 004311 Flame Switch
Special Price $417.65 Regular Price $488.48
In stock
SKU
004311
Manufacturer:
The Keating 004311 Flame Switch works by identifying the existence of a burner flame and communicating the control system to ensure that it is operating as it should. It operates by a sensor system that measures the conditions of combustion and transmits the status changes to other related components of the equipment. This switch is installed in commercial kitchen appliances, especially in gas-powered cooking units where flame control is required to control heating. It is placed close to the burner assembly, and is part of internal structure of the appliance to interact with ignition and flame detection systems and hold the system together.
Dimensions
- Length: 3.5 In
- Width: 3.5 In
- Height: 1.5 In
- Weight: 0.2 lbs
Product Notes
- Flame Switch, Contains Mercury, Harper Wyman,
- 26" Cap, Bulb 1/8" X 2-3/16", Normally Open Pilot Safety,
- Metal Mounting Plate W/ 2 Ea Mt Holes Ctrs 1-5/8".
- 2Ea 1/4" Tab Terminals, N.O.& Com,
- 2 Sheet Metal Mt Screws,
- Includes Instructions
- This Is The Old Style Keating Flame Switch.
- For New Style Keating Flame Switch, Keating Supplies A
- Conversion Kit. Model And Serial #S Required. Special Order
