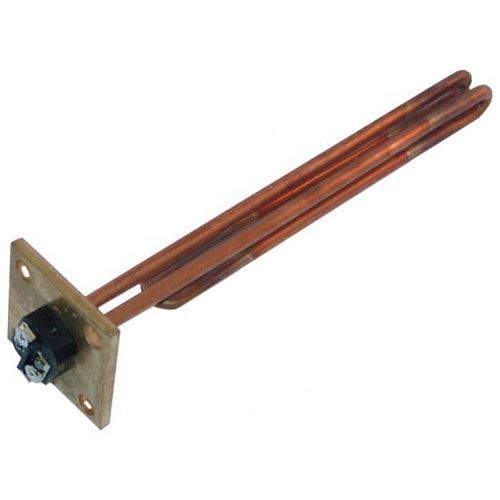

Hatco 02-04-500 Booster Element 2-1/2" SQ Flange 5000W 208V

SKU: 02-04-500 1-02-04-500 Brand:
Hatco
Availability:
Out of Stock
(0)
$46.35 Price reduced from $77.00
Save $30.65
Have a Question? +1 (866) 863-0907

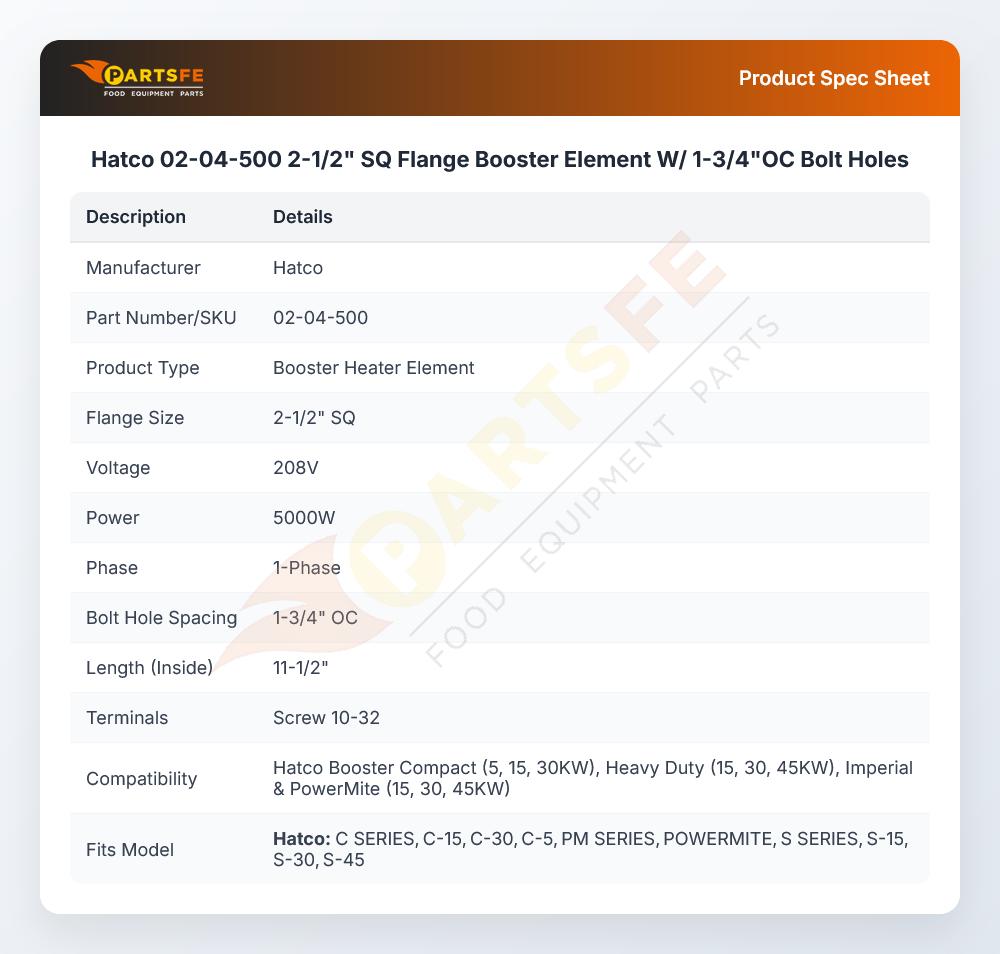

Specifications:

  • Booster Element, 2-1/2" Sq Flange,
  • [ 208V 5000W 1Ph ] [ 1-3/4"Oc Bolt Holes~
  • 11-1/2"L
  • Inside ] [Terminals {Screw 10-32} # 26-2345 Included,
  • [ Includes Gasket 32-1166 ]
  • Hatco Booster Compact (5 & 15 & 30Kw),
  • Heavy Duty (15 & 30 & 45Kw),
  • Imperial & Powermite (15 & 30 & 45Kw).

Description

The Hatco 02-04-500 Booster Element is a 5000-watt 208-volt electric heating element that can be used in commercial cooking equipment. It produces additional heat to increase the temperature of incoming water to desired sanitation levels to support high-temperature dishwashing systems. This element is installed in the booster heater tank with a 2-1/2" square flange to be used with thermostats and controls to provide a steady level of heat output when in operation. In foodservice and commercial kitchens, it is used to make sure that dishwashers have the right temperature of rinse water.

Dimensions:

  • Weight: 1.3 lbs
  • Length: 2.5 in
  • Height: 12.38 in
  • Width: 2.5 in

HATCO:

02-04-500-00 02.04.500 02.04.500.00 2-04-500 2-04-500-00 2.04.500 2.04.500.00 HT02-04-500 HT02-04-500-00 HT02.04.500 HT02.04.500.00 HT2-04-500 HT2-04-500-00 HT2.04.500 HT2.04.500.00 HTR02-04-500 HTR02-04-500-00 HTR02.04.500 HTR02.04.500.00 R02-04-500 R02-04-500-00 R02.04.500 R02.04.500.00

SECO:

0153400 946

Step1: Disconnect power and water supply; allow unit to cool.

Step2: Remove access panel and disconnect old booster element wiring carefully.

Step3: Align new SQ flange booster element and secure using OC bolt holes.

Step4: Reconnect electrical terminals as per wiring diagram ensuring tight connections.

Step5: Restore power, check for leaks or overheating before operation.

Step6: Safety: ensure grounding and wear insulated gloves during installation.
