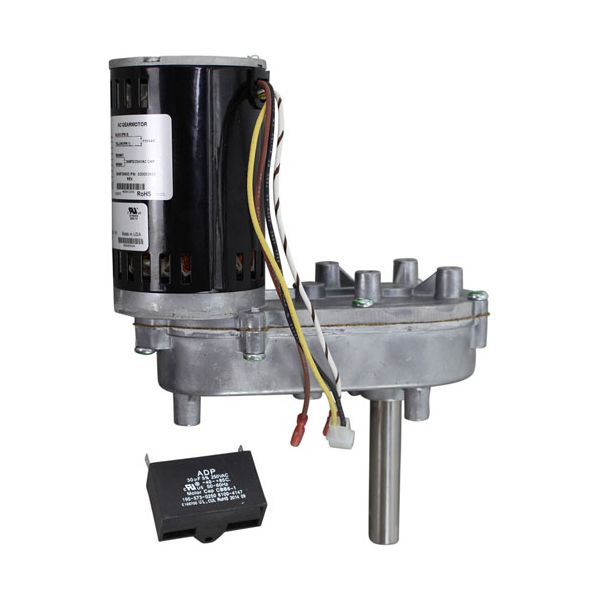

Manitowoc 020003650 Ice Machine Motor/Reducer Assembly

Product Overview:
Provides controlled rotational motion, the Manitowoc 020003650 Ice Machine Motor 115V is an OEM motor/reducer assembly that combines an electric motor with a reducer for the mechanical drive system in applicable commercial ice machines. Motor rotation passes through the reduction gearing to produce controlled mechanical movement for the connected drive mechanism. The assembly is specified for 115V operation.

Motor Operation:
The electric motor converts electrical power into mechanical rotation for the connected drive system. Motor output passes through the reducer, where the rotational movement is adjusted through the reduction gearing before being transferred to the equipment's mechanical drive mechanism. This arrangement provides the controlled rotation required for motor-driven movement during normal ice machine operation.

Drive Operation:
Combined motor and reduction gearing provide the mechanical drive for the connected operating mechanism within the ice machine. The motor supplies rotational input while the reducer controls the resulting mechanical output delivered to the drive system. This integrated configuration supports the motor-driven movement required during the equipment's operating cycle.

Replacement Guidelines:
Replacement of the Manitowoc 020003650 Ice Machine Motor 115V should be considered when the motor fails to operate consistently or the reducer no longer provides the required mechanical movement. Unusual operating noise, uneven drive motion, or failure of the connected mechanism to operate can indicate that the assembly is no longer performing as intended. Before purchasing a replacement, verify the equipment model and applicable part number against the relevant parts documentation.

Common Failure Symptoms:

• Motor fails to start during the operating cycle.
• Mechanical drive movement becomes slow or inconsistent.
• Unusual noise develops from the motor or reducer.
• Connected equipment components do not receive the expected drive motion.
• Ice production becomes irregular because of interrupted mechanical operation.
• Excessive movement or abnormal operation occurs within the drive system.

Equipment Compatibility:
The Manitowoc 020003650 Ice Machine Motor 115V is an OEM motor/reducer assembly associated with applicable Multiplex and Manitowoc-related ice machine applications. Its motor and reduction gearing configuration is intended for equipment requiring this type of mechanical drive assembly.

Technical Specifications:
Brand: Manitowoc
Part Number / SKU: 020003650
Product Type: Motor/Reducer Assembly
Voltage: 115V

Step1: Shut off the power and unplug ice machine.

Step2: Remove the front panel to access drive area.

Step3: Disconnect wiring and coupling.

Step4: Unbolt the old motor/reducer and remove.

Step5: Install new motor/reducer assembly, align gears and mounts.

Step6: Reconnect wiring and coupling, replace the panel.

Step7: Restore power and test ice cycle, ensuring proper operation.

• What maintenance is required for the Manitowoc 020003650 Motor/Reducer Assembly?

  Regularly inspect the motor and reducer for debris, ice buildup, or signs of wear. Clean and lubricate moving parts according to manufacturer guidelines. Proper maintenance ensures smooth operation and prevents mechanical strain. Always disconnect power before servicing.

• What are common issues with the Manitowoc 020003650 Motor/Reducer Assembly?

  • Motor failing to start consistently.
  • Strange noises from the reducer or motor.
  • Slow or uneven ice production.
  • Leaks or worn seals affecting performance.
