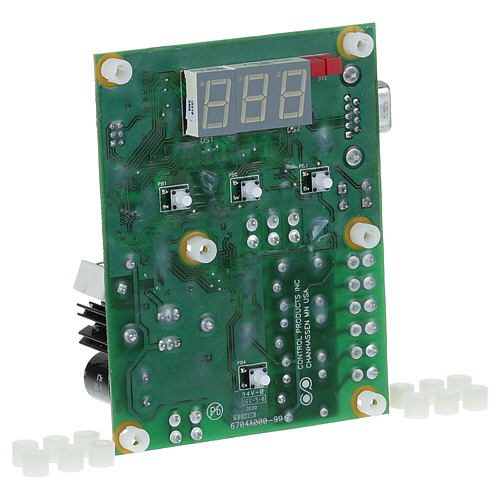

Hatco 02.01.189.00 Control Board Kit

SKU: 02.01.189.00 1-02.01.189.00 Brand:
Hatco
Availability:
Out of Stock
(0)
$258.91 Price reduced from $279.00
Save $20.09
Have a Question? +1 (866) 863-0907

Specifications:

  • Color: Green
  • Material: Plastic
  • Length: 4 3/4" | 121 mm
  • Width: 3 5/8" | 92 mm
  • Voltage: 24 V Ac
  • Includes: 12 Standoffs
  • Instructions Included: Y

Description

The Hatco 02.01.189.00 Control Board Kit is a replacement board that operates through user input sensors or interfaces and sends power to the heating or mechanical systems. It takes signals to regulate temperature, timing or other systems. This control board kit is mounted within compatible equipment, which is usually mounted in the main control compartment. It is linked to the wiring harnesses, relays, and sensors to coordinate the operation. The kit replaces or upgrades the control board that is currently in use to enhance the operation of the system.

Dimensions:

  • Weight: 0.33 lbs
  • Length: 6 in
  • Height: 2 in
  • Width: 5 in

HATCO:

02-01-189 02.01.189 2-01-189 2.01.189 HATR02-01-189 HT02-01-189 HT02.01.189 HT2-01-189 HT2.01.189 HTR02-01-189 HTR02-01-189-00 HTR02.01.189 HTR02.01.189.00 R02-01-189 R02-01-189-00 R02.01.189 R02.01.189.00

Step1: Turn off and unplug the unit to prevent electrical shock.

Step2: Remove the access panel using appropriate tools.

Step3: Locate and disconnect wires from the old control board.

Step4: Unscrew and carefully remove the existing board.

Step5: Mount the new control board securely in place.

Step6: Reconnect wires according to labels or diagram.

Step7: Reattach the panel, restore power, and test functionality.

  • What maintenance is required for the Hatco 02.01.189.00 Control Board Kit?

    Inspect for loose connections and signs of moisture or corrosion inside the control board housing, and keep terminals tight and dust-free for accurate operation. Periodically test electrical continuity and stable voltage supply. Always disconnect power before servicing.

  • What are common issues with the Hatco 02.01.189.00 Control Board Kit?

    • Intermittent power loss.
    • Relay failure or switching errors.
    • Overheating due to electrical faults.
    • Unresponsive control signals.
    • Corrosion on terminals causing poor connectivity.
    • Blown fuse on control circuit.
