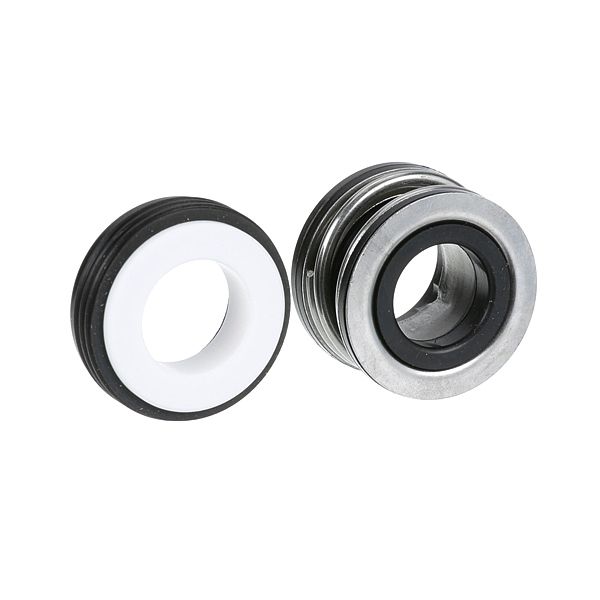

main product photo

Jackson 05330-002-34-22 Pump Seal 5/8" DIA

Be the first to review this product
Special Price $61.47 Regular Price $100.06
In stock
SKU
05330-002-34-22
Add to Wish List
Dishwasher Parts, Pumps & Seals,
Manufacturer:
The Jackson 05330-002-34-22 Pump Seal is designed to cover the space between rotating nozzle parts and other surfaces to assist control fluid flow in the assembly during wash and rinse cycles. The seal is designed to be a 5/8-inch diameter, fitting around the area of the shaft to prevent water from flowing in while allowing the mechanical parts to move up and down during operating cycles. It fits in with the housing and shaft assembly that is used in compatible commercial appliance equipment in kitchens, food service facilities and high-volume cleaning stations.

Dimensions

  • Length: 1.5 In
  • Width: 1.5 In
  • Height: 1.5 In
  • Weight: 0.25 lbs
https://partsfe.com/media/catalog/product/j/a/jackson-05330-002-34-22-5-8-dia-dishwasher-pump-seal-80734-2.jpg

Product Notes

  • Pump Seal 5/8" Dia.
  • Adamation Diswasher Used On "Worthington" Pumps Only.
  • Champion Diswasher Series: L33, Fw60
  • Jackson Diswasher Jpx 300
ADAMATIC:
CHAMPION:
INSINGER:
Reviews
Write Your Own Review
You're reviewing:Jackson 05330-002-34-22 Pump Seal 5/8" DIA
Your Rating
FAQS
Customer Questions
What maintenance is required for the Jackson 05330-002-34-22 Pump Seal?

Regularly inspect the dishwasher pump seal for leaks, cracks, or wear. Clean the surrounding area to prevent debris buildup and ensure proper installation. Maintenance prevents fluid leaks, maintains pump efficiency, and reduces the risk of damage to connected components.

What are common issues with the Jackson 05330-002-34-22 Pump Seal?

  • Leaking fluids around the seal.
  • Seal cracking or hardening.
  • Improper installation is causing leaks.
  • Reduced pump efficiency due to damage.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off the dishwasher power and shut off the water supply completely.

Step2: Carefully open the pump housing to access the seal.

Step3: Remove the worn seal from the shaft assembly.

Step4: Install the new seal without damaging sealing surfaces.

Step5: Reassemble pump components in the correct order.

Step6: Restore water and electrical connections.

Step7: Run the dishwasher and check thoroughly for leaks.
