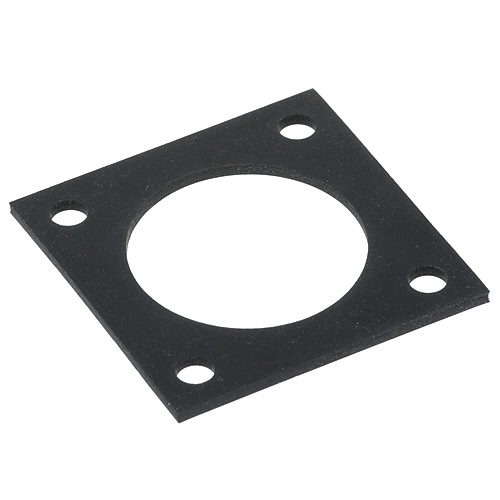

Jackson 05330-011-47-79 Flange Gasket 3" X 3"

SKU: 05330-011-47-79 1-05330-011-47-79 Brand:
Jackson
Availability:
In Stock
(0)
$7.20 Price reduced from $8.99
Save $1.79
Have a Question? +1 (866) 863-0907

Specifications:

  • Gasket, 3" Square Flange
  • [ 3" X 3" ] [Rubber ] [ Black ]
  • Mount 4 Holes, 2.25" Mount Hole Ctrs
  • Champion Dishwasher
  • Cleveland Steamers
  • Jackson Dishwasher 150, Jp24

Description

The Jackson 05330-011-47-79 Flange Gasket is a 3" x 3" sealing strip that is used in other foodservice equipment. It provides a safe, waterproof seal between the surfaces that are connected together, to ensure that the water flows and the system pressure is maintained. This gasket is used in wash or rinse assemblies where the ability to perform in sealing is a requirement. It assists in maintaining the effective functioning of the equipment in the kitchen conditions and maintains the overall optimal level of the equipment, providing the stability of the connections inside the appliance.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 3.13 in
  • Height: 0.2 in
  • Width: 3.13 in

CHAMPION:

108345 CHA108345

CLEVELAND:

103989 7128 CLE07128 CLE103989 CLE7128

JACKSON:

5330-011-47-79 53300114779 JAC5330-011-47-79

Step1: Disconnect power and water supply before servicing the unit.

Step2: Remove the old gasket and clean the flange mounting surface thoroughly.

Step3: Align the new gasket with the mount hole centers.

Step4: Position the gasket evenly between the flange and mating surface.

Step5: Insert and hand-tighten mounting screws to hold alignment.

Step6: Tighten screws evenly in a cross pattern to ensure proper sealing.

Step7: Restore power and water, then check carefully for leaks.

  • What maintenance is required for the Jackson 05330-011-47-79 Flange Gasket?

    Check the flange gasket periodically for compression loss, cracks, or deformation that could affect sealing performance. Ensure mounting surfaces remain clean, dry, and free from grease or debris before reassembly. Proper alignment during installation can maintain even pressure distribution. Replace the gasket if any leakage or visible consumption occurs.

  • What are common issues with the Jackson 05330-011-47-79 Flange Gasket?

    • Leakage from compressed gasket.
    • Cracking due to heat or chemical exposure.
    • Flattening causing poor sealing pressure
    • Misalignment of mounting holes
    • Rubber degradation over time
    • Improper fit leading to fluid seepage
