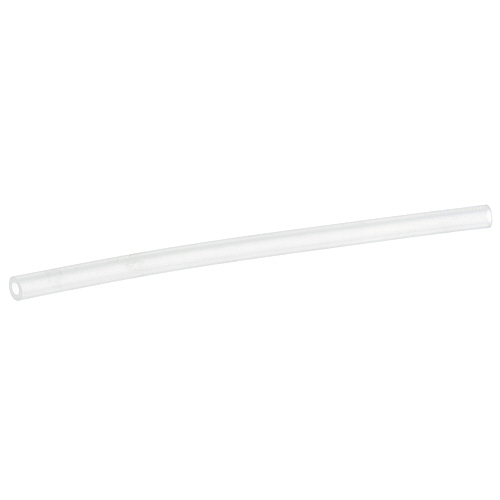

Jackson 05700-003-22-89 Dishmachine Squeeze Tube 3/16" X 8"

This tube is used to move water or cleaning solution between different parts of a commercial dishwasher. It measures 3/16" x 8" with a 3/8" outer diameter, allowing it to connect to compatible system components. The tube helps direct liquids through the machine where they are needed and is commonly used in commercial dishwashers found in restaurants and other foodservice facilities. If the tube becomes clogged or damaged, liquid flow may be reduced and cleaning performance can be affected. Replacing the tube can help restore proper flow and support normal dishwasher operation.

Equipment Compatibility:
Typical uses for Jackson Tube include commercial dishwashers and warewashing machines where water or cleaning solution needs to move correctly through the system for proper cleaning performance and consistent operation. This Tube 05700-003-22-89 is compatible with commercial equipment from leading brands such as Jackson, and more, including models like Avenger HT, Conserver AXL, Conserver XL, and Conserver XL2, where proper liquid flow is needed to maintain reliable washing performance and efficient machine operation.

Brand Compatibility:
This component replaces equivalent tube references used in commercial warewashing systems from Jackson and more, where proper fluid transfer and consistent internal flow are required for stable dishwasher operation and effective cleaning performance. Complete cross-reference details are provided separately.

Product Specifications:
Product Type: Tube
Manufacturer: Jackson
SKU: 05700-003-22-89
Tube Size: 3/16" x 8" for proper fit
Outer Diameter: 3/8" OD for connection with fittings
Application: Moves water or cleaning solution inside the machine
Installation: Made to replace the original part in matching units

Key Features:

• The 3/16" x 8" size with a 3/8" outer diameter helps it fit correctly in the system.
• Moves water or cleaning solution through the machine so it works properly.
• Helps keep the flow steady for better cleaning results.
• Replacing a damaged tube can fix water flow problems.
• Made for use in commercial dishwashers.
• Connects easily with other parts in the system.
• Simple to install on compatible machines.
• Helps the machine run smoothly during daily use.

Step1: Disconnect power and shut off water supply before starting installation.

Step2: Remove the old or damaged tube carefully from the fittings.

Step3: Clean the connection points to ensure a tight, leak-free fit.

Step4: Insert the new tube securely into the fittings without bending it.

Step5: Tighten fittings firmly to prevent leaks, but avoid over-tightening.

Step6: Restore water and power, then check for proper flow and leaks.

• What maintenance is required for the Jackson 05700-003-22-89 Tube ?

  Inspect the tube regularly for clogs, corrosion, and wear. Clean internal passage with approved solution to prevent buildup. Ensure all fittings are tight to avoid leaks. Handle carefully during servicing to prevent bending or deformation.

• What are common issues with the Jackson 05700-003-22-89 Tube?

  • clogging from debris or scale buildup.
  • corrosion or pitting in metal tubing.
  • leakage at connection points or fittings.
  • bending or deformation causing restricted flow.
  • internal blockage reducing pressure consistency.
  • cracking due to stress or vibration.
