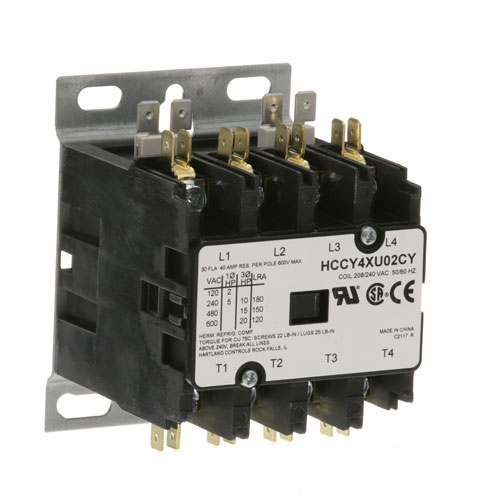

Jackson 05945-109-01-69 Dishmachine Contactor 4 Pole 30/40A 208/240V

SKU: 05945-109-01-69 1-05945-109-01-69 Brand:
Jackson
Availability:
In Stock
(0)
$82.53 Price reduced from $133.85
Save $51.32
Have a Question? +1 (866) 863-0907

Specifications:

  • Hartland Contactor
  • 4 Pole
  • 208/240 Volt
  • 30 Amp Inductive, 40 Amp Resistive
  • Groen Steamer
  • Vulcan Fryer, Kettle, Oven Et

Description

The Jackson 05945-109-01-69 Dishmachine Contactor 4-Pole 30/40A 208/240V is a component that is used to open and close its contacts using an electromagnetic coil to direct electrical power to either heating or motor circuits. It is made to receive currents from a supply. The four-pole design allows switching of many circuits at the same time, coordinating the work of the parts connected to it. Designed to be mounted safely within the electrical compartment of the appliance, fitting with other control components without taking up space in the panel, to fit in the panel space.

Dimensions:

  • Weight: 1.8 lbs
  • Length: 3.13 in
  • Height: 3 in
  • Width: 4 in

CHAMPION:

103207

GENERAL ELECTRIC:

XNC6X127 XNC6X129 XNC6X2

GROEN:

013368 Z013368

HOBART:

00-346466-00014 00-346466-12 00-411497-000D3 111497-D3 24150-1 346466-12 346466-14 411497-000D3 411497-D3 HOB00-346466-12 HOB346466-12 HOBXNC6X127 XNC6X127 XNC6X127/346466-12 XNC6X129/346466-14

JACKSON:

05945-004-43-74 5945-004-43-74 5945-109-01-69 59450044374 59451090169

LANG:

2E-30702-01 30702-01

STAR MFG:

2E-30702-01

VULCAN HART:

00-346466-00014 00-411497-000D3 111497-D3 24150-1 346466-14 411497-000D3 411497-D3

Step1: Turn off main power and verify zero voltage with tester

Step2: Mount contactor on DIN rail or panel securely

Step3: Connect load and line wires to correct terminals per wiring diagram

Step4: Tighten terminal screws firmly

Step5: Connect control coil supply

Step6: Restore power and test operation ensuring correct function insulation and grounding

Step7: Wear PPE and ensure cover is closed before energizing circuit for safety always

  • What maintenance is required for the Jackson 05945-109-01-69 Contactor?

    Inspect the contactor periodically for signs of pitting, arcing, or burnt contacts that can affect performance. Ensure all electrical terminals are tight and free from corrosion to maintain stable conductivity. Keep the enclosure clean and dry to prevent moisture-related failures.

  • What are common issues with the Jackson 05945-109-01-69 Contactor?

    • Contact pitting or burning from electrical arcing.
    • Coil failure preventing activation.
    • Intermittent switching or chattering.
    • Voltage drop causing inaccurate operation.
    • Mechanical wear leading to stuck contacts.
