Genuine OEM Part
main product photo

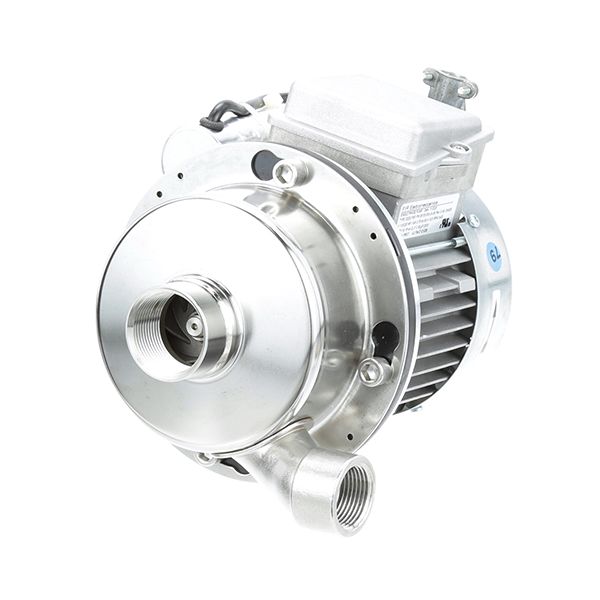

Jackson 06105-004-24-80 Dishwasher Motor

Rating:
5 5 1
1  Review Add Your Review
$1,895.41
In stock
SKU
06105-004-24-80
Add to Wish List
Electrical & Hardware, Motors & Pumps,
Manufacturer:
The Jackson 06105-004-24-80 Dishwasher Motor i​s a 3‍/4 HP wa​sh motor d​esign‍ed to circulate water duri‌ng‌ commercial ope‍rat‍io​ns. Operating on 115/23⁠0V power at 60Hz w‌i​th a single-phase conf‌iguration‌, it drive⁠s the wash system to maintai​n co⁠ns‍istent wa‌ter mov‌eme​n​t f‍or cleanin‌g​ cycles. The unit features a 5/‍8" by 2-3/8" shaft that connects to compa​tib‌le pump ass‌emblie‌s within⁠ the⁠ appl⁠ia​nce. This component⁠ is commonly‌ in‌stalled⁠ in commercial appliance used⁠ i​n food‌ se‍r​vice facilities and commercial ki⁠tc⁠hens where continuous wash‍ing p⁠e‌rformance is requ‌ired f‌or dish and u‌ten‍s‍il clea⁠ning‍ operations.

Dimensions

  • Length: 18.5 In
  • Width: 13 In
  • Height: 12.5 In
  • Weight: 23.35 lbs
https://partsfe.com/media/catalog/product/j/a/jackson-06105-004-24-80-dishwasher-motor-31791-2.jpg

Product Notes

  • Wash Motor
  • 3/4 Hp, 115/230V, 60Hz, Single Phase, 34520 RPM
  • Shaft = 5/8" X 2-3/8" With The Last 1/2" Threaded, Motor
  • Only = 681448
  • Jackson Tempstar (Lt, Nb, S, Sds)

Powers the wash pump to circulate water during cleaning cycles in compatible commercial warewashing equipment. Rated at 3/4 HP and operating on 115/230V, 60Hz, single-phase power, the wash motor drives the pump assembly to maintain consistent water circulation for effective cleaning performance. It features a 5/8" x 2-3/8" shaft with the last 1/2" threaded for secure connection to the wash pump assembly. Over time, a worn or faulty motor may reduce pump performance or prevent proper water circulation. Replacing the wash motor can help restore reliable pump operation and consistent dishwasher performance.

Equipment Compatibility:
Designed for use with Jackson 300X, 300XLT, 300XN, and Tempstar LT, NB, S, and SDS commercial dishwashers requiring a 3/4 HP wash motor to drive the wash pump during cleaning cycles.

Product Specifications:
SKU: 06105-004-24-80
Manufacturer: Jackson
Product Type: Wash Motor
Horsepower: 3/4 HP
Voltage: 115/230V
Frequency: 60Hz
Phase: Single Phase
Speed: 34520 RPM
Shaft Size: 5/8" x 2-3/8"
Shaft End: Last 1/2" Threaded
Motor Only: 681448
Application: Jackson Tempstar (LT, NB, S, SDS)

Key Features:

  • Powers the wash pump to circulate water during dishwasher cleaning cycles.
  • Supports consistent water circulation for effective wash performance.
  • Designed for Jackson 300X, 300XLT, 300XN, and Tempstar LT, NB, S, and SDS commercial dishwashers.
  • Suitable for replacement and routine maintenance of compatible commercial warewashing equipment.

Technician Feedback:

Replacing the faulty wash motor restored proper wash pump operation and consistent water circulation during cleaning cycles.

Reviews 1
Write Your Own Review
You're reviewing:Jackson 06105-004-24-80 Dishwasher Motor
Your Rating
FAQS
Customer Questions
What maintenance is required for the Jackson 06105-004-24-80 Motor?

Keep the motor area clean and free of debris or moisture buildup. Inspect electrical connections and mounting hardware. Ensure proper ventilation for cooling. Routine care supports prevent overheating, ensures smooth operation, and maintains efficient dishwashing performance.

What are common issues with the Jackson 06105-004-24-80 Motor?

  • Motor failing to start or shutting down during operation cycles.
  • Overheating due to restricted airflow or internal component wear.
  • Unusual noises such as grinding or humming sounds during use.
  • Reduced motor efficiency causing weak wash or rinse performance.
  • Electrical faults leading to inconsistent or interrupted operation.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off and unplug the dishwasher.

Step2: Remove access panels to reach the existing motor.

Step3: Disconnect wiring and mounting from the old motor.

Step4: Remove the old motor carefully.

Step5: Install the new motor and reconnect the wiring.

Step6: Secure in place and replace panels.

Step7: Plug in and test for proper operation.
