Genuine OEM Part

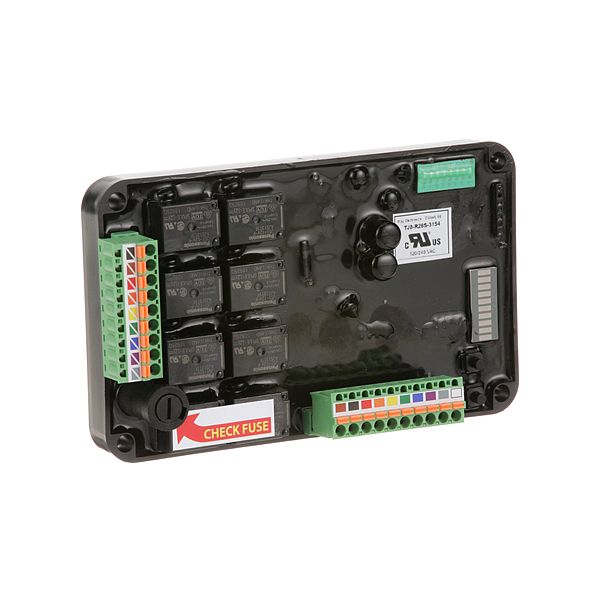

main product photo

Jackson 06401-003-80-83 Dishwasher Timer Kit W/wire Harnesses Screw Terminals Mounting Plate

Be the first to review this product
$1,352.80
In stock
SKU
06401-003-80-83
Add to Wish List
Other Categories, Additional Parts, Timers
Manufacturer:
The Jackson 06401-003-80-83 Timer Kit serves as a replacement system for Jackson TempStar HH, LT, NB, S, SDS dishwashers to deliver accurate cycle duration for Highoperational performance. The kit contains wire harnesses alongside screws and terminals and a mounting plate and detailed installation instructions which simplify the installation process. The partprovides reliable accuracy to maintain wash cycles at consistent levels which results in operational efficiency and reduced delays. The included components form a secure connection that leads to reduced downtime and extended dishwasher life duration.

Dimensions

  • Length: 8.5 In
  • Width: 5.5 In
  • Height: 3 In
  • Weight: 1.9 lbs
https://partsfe.com/media/catalog/product/j/a/jackson-06401-003-80-83-dishwasher-timer-kit-w-wire-harnesses-screw-terminals-mounting-plate-88940-2.jpg

Product Notes

  • Comes With Wire Harnesses, Screw, Terminals, Mounting Plate
  • And Instructions
  • Jackson Tempstar (Hh, Lt, Nb, S, Sds)
More Information
Disable SaleableNo
Replaces Parts
JACKSON:
06401-003-80-83, 6401-003-80-83, 64010038083, JAC06401-003-80-83, JAC6401-003-80-83, JAC64010038083
Reviews
Write Your Own Review
You're reviewing:Jackson 06401-003-80-83 Dishwasher Timer Kit W/wire Harnesses Screw Terminals Mounting Plate
Your Rating
FAQS
Customer Questions
What maintenance is required for the Jackson 06401-003-80-83 Timer Kit?

Inspect the timer for proper operation and clean any dust or debris. Check wiring and connectors for corrosion or looseness. Proper maintenance ensures accurate wash cycles and prevents interruptions in dishwasher operation.

What are the common issues with the Jackson 06401-003-80-83 Timer Kit?

  • Timer failing to advance or stop at the correct cycle.
  • Loose or corroded electrical connections.
  • Mechanical wear is causing sticking or skipping.
  • Intermittent or inconsistent cycle timing.
  • Failure to start or complete wash cycles due to timer malfunction.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off the power to the dishwasher to avoid electrical hazards.

Step2: Remove the control panel to access the old timer.

Step3: Disconnect all wiring from the old timer carefully.

Step4: Unscrew and remove the old timer from its mount.

Step5: Install the new timer in the same orientation as the old one.

Step6: Reconnect all wiring securely to the correct terminals.

Step7: Replace the control panel and fasten the screws.

Step8: Restore power and run a test cycle to check proper operation.
