Jade Range 1014700000 Bottom Grate Cast Iron 15" X 8" 72 Sq Holes

SKU: 1014700000 1-1014700000 Brand:
Jade Range
Availability:
In Stock
(1)
$135.64 Price reduced from $209.00
Save $73.36
Have a Question? +1 (866) 863-0907

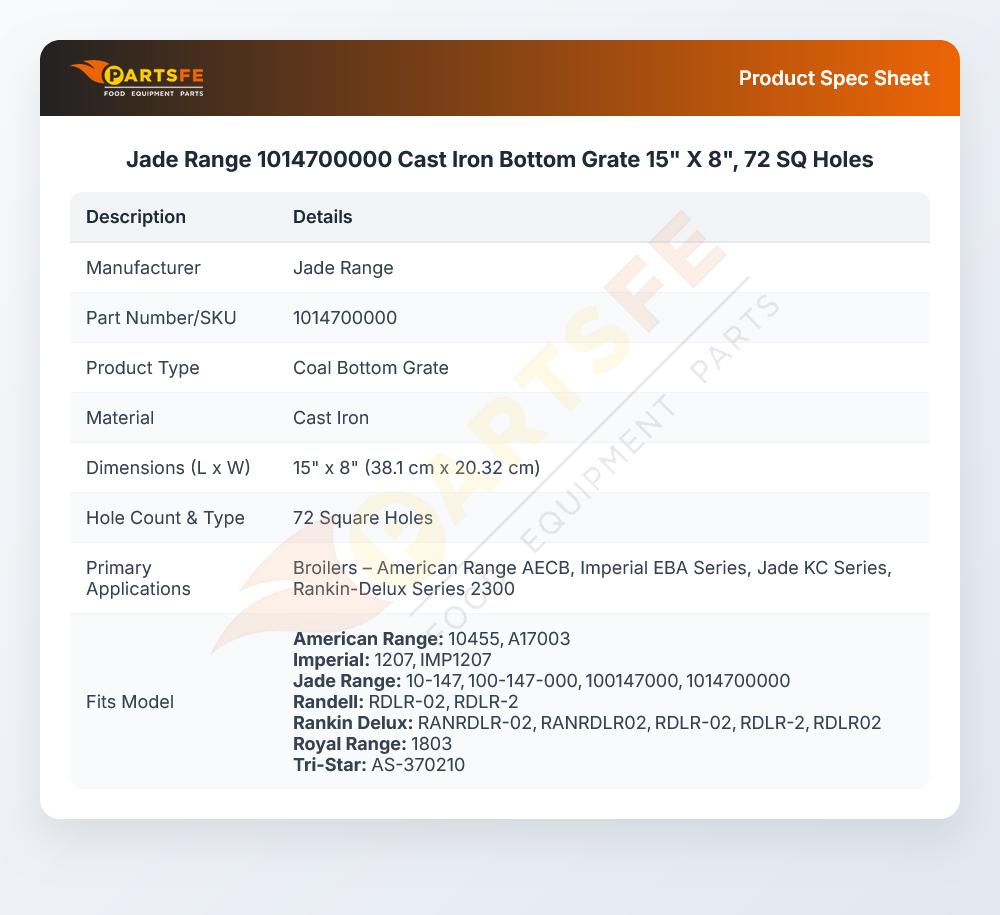

Specifications:

  • Bottom Grate, Cast Iron
  • [ 15" X 8" ] 72 Sq Holes
  • American Range Broiler Aecb
  • Imperial Broiler Series: Eba.
  • Jade Broiler Series: Kc.
  • Rankin-Delux Broiler 1223, Series: 2300.

Description

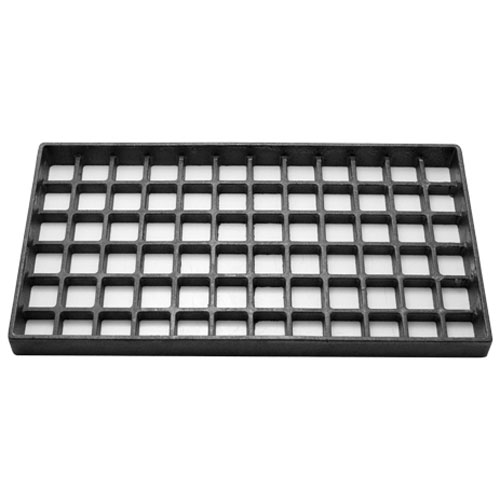

The Jade Range 1014700000 Bottom Grate is a 15 inch by 8 inch cast iron grate and design has 72 square holes to enable the free flow of air and distribution of heat in a charbroiler. It is also able to hold lava rocks or briquettes, and can be used as a base to provide uniform heating for cooking applications. Made of cast iron, it is intended to be used directly at the bottom of the heat source portion of the broiler. It is supposed to provide it with a stable, heat-resistant surface, to ensure that the outcomes of cooking various food products are always the same.

Dimensions:

  • Weight: 14.58 lbs
  • Length: 5.88 in
  • Height: 0.4 in
  • Width: 3.12 in

AMERICAN RANGE:

10455 A17003

IMPERIAL:

1207 IMP1207

JADE RANGE:

10-147 100-147-000 100147000

RANDELL:

RDLR-02 RDLR-2

RANKIN DELUX:

RANRDLR-02 RANRDLR02 RDLR-02 RDLR-2 RDLR02

ROYAL RANGE:

1803

TRI-STAR:

AS-370210

Step1: Ensure appliance off and cool

Step2: Remove existing grate and clean support ledges

Step3: Align cast iron bottom grate with burner frame

Step4: Lower evenly into position ensuring corners seat properly

Step5: Check stability and adjust if uneven never force into place

Step6: Wear gloves to avoid sharp edges and heavy metal handling injuries

  • What maintenance is required for the Jade Range 1014700000 Bottom Grate?

    Regularly clean the bottom grate to remove grease, food particles, and carbon deposits that can obstruct airflow and heat distribution. Inspect the cast iron surface for cracks, warping, rust, or damaged openings. Ensure all square holes remain clear and the grate is properly positioned within the cooking equipment.

  • What are common issues with the Jade Range 1014700000 Bottom Grate?

    • Rust formation from moisture exposure.
    • Warping due to high heat over time.
    • Uneven burner support causing instability.
    • Clogging of holes reducing flame efficiency.
    • Surface pitting from prolonged grease buildup.
