Genuine OEM Part

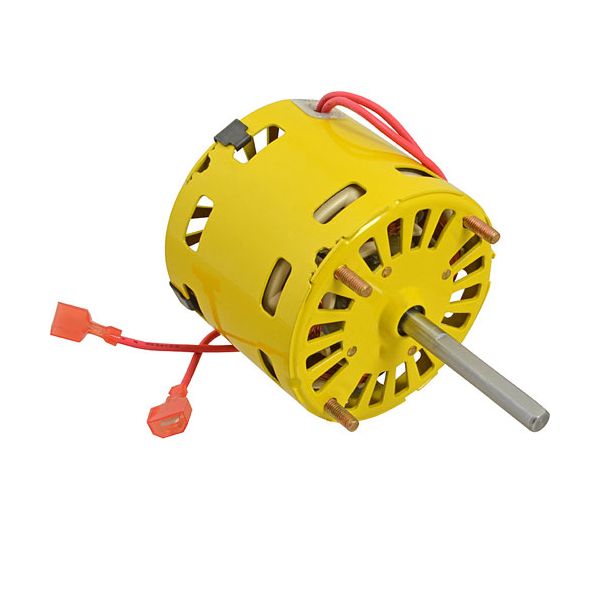

main product photo

Russell 102540004 Refrigerator Evaporator Motor 230V Yellow

Rating:
5 5 1
1  Review Add Your Review
Special Price $261.00 Regular Price $375.00
In stock
SKU
102540004
Add to Wish List
Electrical & Hardware, Motors & Pumps,
Manufacturer:
The Russell 102540004 Refrigerator Evaporator Motor Yellow powers the fan system by rotating the blades to circulate air through, the refrigeration unit. It uses 230V power, and assists in maintaining the airflow within the cabinet to aid the cooling process. This evaporator motor is generally used in the compartment of commercial refrigerators and refrigeration systems that need controlled air movement for temperature distribution. The yellow motor assembly is for use with compatible refrigeration equipment and provides for continuous fan operation during cooling cycles.

Dimensions

  • Length: 6.5 In
  • Width: 4 In
  • Height: 4 In
  • Weight: 3.25 lbs
https://partsfe.com/media/catalog/product/r/u/russell-102540004-refrigerator-yellow-evaporator-motor-230v-74646-2.jpg

Driving the evaporator fan within compatible Russell refrigeration equipment, the Russell 102540004 evaporator motor provides rotational movement for the fan assembly. The motor allows air to circulate across the evaporator and through the refrigerated compartment during operation. This unit operates on a 230V electrical supply and features a yellow configuration for the specified application. Installed within the evaporator fan assembly, the motor provides the mechanical operation required for airflow movement throughout the refrigeration system.

Equipment Compatibility:
Designed for compatible Russell commercial refrigeration systems requiring a 230V evaporator motor for evaporator fan operation, including 8216071, 08216071, 102540004, and RUS08216071.

Product Specifications:
SKU: 102540004
Manufacturer: Russell
Product Type: Refrigerator Evaporator Motor
Voltage: 230V
Colour: Yellow

Key Features:

  • Provides rotational movement to the evaporator fan assembly.
  • Operates using a 230V electrical supply.
  • Supports airflow circulation through the evaporator system.
  • Features the specified yellow motor configuration.
  • Integrates with evaporator fan mechanisms requiring the listed motor specification.

The evaporator motor was worn and affecting airflow through the unit. Replacing it brought the airflow back.

Replaces Parts
MASTERBILT:
RUSSELL:
102540004, 8216071, RUS08216071
Reviews 1
Write Your Own Review
You're reviewing:Russell 102540004 Refrigerator Evaporator Motor 230V Yellow
Your Rating
FAQS
Customer Questions
What maintenance is required for the Russell 102540004 Evaporator Motor?

Check for dust, debris, or ice buildup. Lubricate motor bearings and tighten wiring to keep them secure. Proper care ensures accurate cooling and prevents uneven temperature distribution in the refrigeration system.

What are the common issues with the Russell 102540004 Evaporator Motor?

  • Motor failure or intermittent operation.
  • Excessive noise or rattling.
  • Reduced airflow due to ice buildup.
  • Electrical connection issues.
  • Overheating during prolonged cycles.
  • Vibration affecting refrigerator operation.
  • Inefficient cooling or uneven temperatures.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Unplug the refrigerator for safety.

Step2: Remove shelving or panels to access the evaporator area.

Step3: Disconnect the motor wiring carefully.

Step4: Remove the old motor from its bracket.

Step5: Clean the mounting area of ice or debris.

Step6: Mount the new motor in the same position.

Step7: Reconnect all wiring correctly.

Step8: Reassemble panels and shelving.
