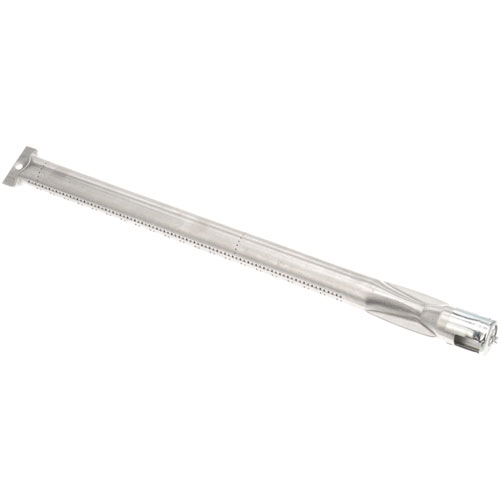

American Range 10469 Oven 20.25" Steel Tubular Burner W/ Air Shutter

SKU: 10469 1-10469 Brand:
American Range
Availability:
In Stock
(0)
$35.91 Price reduced from $57.00
Save $21.09
Have a Question? +1 (866) 863-0907

Specifications:

  • Steel Tubular Burner
  • [ 20.25" ] 13.5" Burn Area, Air Shutter - 1.25"Dia,
  • Note: Used On Model Icv And Ir When It Is Comvection Oven.
  • For Model "Ir" Standard Oven Use # 26-2701
  • For Model Ir-2000 And Itg Use Imperial # 1031 # 26-1917.
  • American Range Oven Ar, Ar-C
  • Imperial Icv2, Ia, Icv & Ir Convection Oven.

Description

This American Range 10469 Oven Steel Tubular Burner 20.25” with Air Shutter is suitable for convection oven like AR, AR-C, and Imperial ICV2 & IR models. It has a burn area of 13.5” and an air shutter of 1.25” diameter to allow for even heat distribution to allow for the better grilling. This burner improves efficiency by delivering a steady flame which is suitable for baking, roasting and grilling. It is an essential part of the oven efficiency and is designed to be used on the oven models that need accuracy in heating such as IR, IR-2000 and ITG.

Dimensions:

  • Weight: 1 lbs
  • Length: 20.25 in
  • Height: 2 in
  • Width: 1.25 in

AMERICAN RANGE:

A14000 R14020

IMPERIAL:

1035

Step1: Shut off oven gas and power supply; ensure oven is completely cool before starting.

Step2: Remove existing old burner carefully and clean mounting area of debris.

Step3: Position new tubular burner, align fittings, and secure with screws.

Step4: Connect gas line and adjust air shutter per manufacturer settings.

Step5: Check for leaks using soapy water and restore supply.

Step6: Test ignition carefully and ensure stable flame before full operation.

  • What maintenance is required for the American Range 10469 Tubular Burner With Air Shutter?

    Clean burner ports regularly to prevent blockage from grease or debris that may affect combustion. Ensure air shutter remains properly adjusted for correct air-to-gas mixture. Verify even flame distribution and stable heating performance during repeated oven operation cycles.

  • What are the common issues with the American Range 10469 Tubular Burner With Air Shutter?

    • Uneven flame distribution.
    • Burner ports becoming clogged.
    • Improper air-to-gas ratio.
    • Ignition difficulty occurring.
