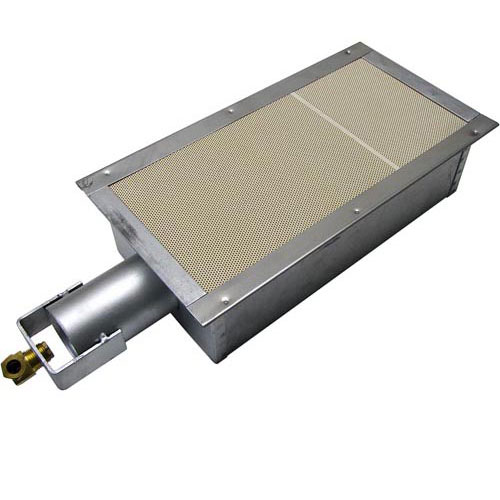

American Range 10477 Infrared Broiler Burner 12-3/4" X 7"OD

SKU: 10477 1-10477 Brand:
American Range
Availability:
In Stock
(0)
$341.91 Price reduced from $655.00
Save $313.09
Have a Question? +1 (866) 863-0907

Specifications:

  • Infra-Red Broiler Burner
  • Top Of Box, 12-3/4" X 7" Od, Weight 5.6 Lbs.
  • Ceramic Area 11-1/4" X 5-1/8"
  • Bottom Of Box 11-11/16" X 5-3/4" X 3-3/8"H
  • Venturi 2.122" Dia Od X 2-5/16"L, W/ Bracket 4-3/16"L
  • Orifice #48 X 3/8" Cct
  • Total Length W/O Orifice 16-1/2"
  • American Range
  • Broiler Arcm Cheesemelter, Avb Vertical Broiler.
  • ***Verify The Size Of The Burner The Customer Is Ordering -
  • American Range Has Conflicting Information On Their Ir
  • Burners.
  • May Need Part Number 263692***

Description

The American Range 10477 Infrared Broiler Burner 12-3/4" by 7" is a heating element in commercial cooking equipment. It is installed in the broiler unit and converts gas or electricity into infrared heat. This burner is applied in restaurant kitchens to sear meats, melt toppings or brown foods effectively and provide predictable results continuously. It works in conjunction with the control system of the broiler, keeping the heat levels and making it energy-efficient. The burner is vital in sustaining the cooking capacity, and the consistency of operation.

Dimensions:

  • Weight: 5.67 lbs
  • Length: 17 in
  • Height: 3.3 in
  • Width: 7.5 in

Step1: Turn off gas and electrical supply to the broiler, allow unit to cool fully, and wear heat-resistant gloves.

Step2: Remove the existing old burner assembly, noting connection placement, and inspect manifold and mounting area for debris or damage.

Step3: Position new burner into mounting brackets, ensuring alignment with gas ports and secure fit.

Step4: Tighten all fasteners securely, reconnect gas line, and check for leaks using approved leak solution.

Step5: Restore power, ignite burner, check even flame, and ensure safe operation; adjust if necessary system.

  • What maintenance is required for the American Range 10477 Burner?

    Clean burner ports and infrared surfaces regularly to remove grease and carbon buildup that may affect heat output. Inspect mounting and gas connections for leaks or looseness. Verify even radiant heat distribution during repeated operation cycles without hot spots or flame instability.

  • What are common issues with the American Range 10477 Burner?

    • Burner ports clogging.
    • Uneven radiant heating.
    • Ignition issues occurring.
    • Gas flow instability.
