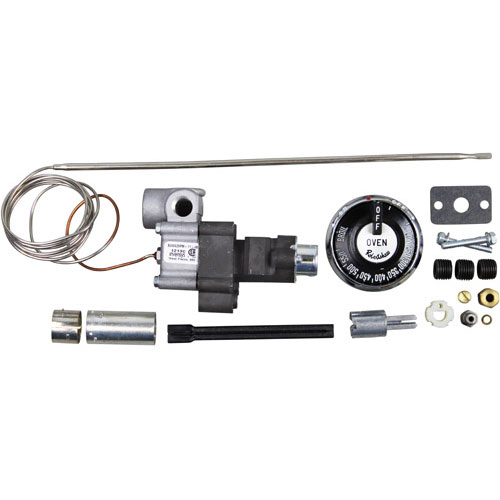

Imperial 106-3 Thermostat W/Dial 150°F-400°F 3/16" X 11-5/8" Bulb 48" CAP BJWA

SKU: 106-3 1-106-3 Brand:
Imperial
Availability:
In Stock
(0)
$180.10 Price reduced from $277.50
Save $97.40
Have a Question? +1 (866) 863-0907

Specifications:

  • Viewed From Rear:See Addl Image "Outlet Positions"
  • [ Bjwa Kit W/ 3/16" Cct Pilot [ Temp 250-550 ] [ Bulb
  • 3/16" X 11-5/8" ] [ Cap 48" ] [ Out 1/4" Fpt "A,B,C,D,"]
  • [ Rotation 0 Degrees ] [ Includes Dial & Bezel, Stem
  • Adapters, Gasket, Screws ] Wide Flange.
  • Black Dial W/ Adapter = # 22-1028 ]
  • Franklin Chef Oven Gr(10,11,12,13,14,16-0,17,22,
  • 410,415,416,426).
  • Series: Gra & Grax & Grc With S/N 1000000 To 1008568
  • &1017255 & After.
  • Montague Chinese Bbq Oven 28Cbsf, Montague Ii "R".
  • Us Range Oven Series Performer Ii
  • Vulcan/Wolf Oven Series: 59, 64.(70 After 11/74).

Description

The Imperial 106-3 Thermostat with Dial BJWA detects temperature changes through its 3/16-inch by 11-5/8-inch sensing bulb, while the 48-inch capillary tube transfers the temperature response to the control mechanism. The adjustable dial allows temperature selection from 150°F to 400°F, enabling the thermostat to cycle the heating system as the selected setting is reached. This part is installed behind the control panel of compatible commercial cooking equipment, with the sensing bulb positioned inside the heated compartment for continuous temperature monitoring during operation.

Dimensions:

  • Weight: 1.3 lbs
  • Length: 13.75 in
  • Height: 3.5 in
  • Width: 4.25 in

A temperature control component installed in compatible commercial ovens to regulate heat settings within the specified range. The BJWA thermostat uses a sensing bulb and capillary system to respond to temperature changes and adjust connected heating controls according to the selected setting. This configuration includes a 3/16" x 11-5/8" bulb, 48" capillary, and 1/4" FPT outlet, along with a dial, bezel, stem adapters, gasket, and screws for the specified arrangement. The thermostat maintains temperature regulation through its mechanical sensing and control operation.

Equipment Compatibility:
Designed for compatible commercial ovens requiring a BJWA thermostat configuration. Including IR-10, IR-2000-24, IR-36-DS, IR-4-G12, IR-6, and IR-8.

Product Specifications:
SKU: 106-3
Manufacturer: Imperial
Product Type: Thermostat
Thermostat Type: BJWA
Temperature Range: 250-550°F
Bulb Size: 3/16" X 11-5/8"
Capillary Length: 48"
Outlet Size: 1/4" FPT

Key Features:

  • Features a BJWA thermostat configuration with mechanical temperature sensing operation.
  • Includes a 3/16" x 11-5/8" sensing bulb for temperature detection.
  • Provides a 48" capillary length for connection between the sensing bulb and thermostat body.
  • Includes a 1/4" FPT outlet connection within the thermostat assembly.
  • Supplied with dial, bezel, stem adapters, gasket, and screws for the specified configuration.

The thermostat was causing uneven heating, and replacing it fixed the temperature control issue.
