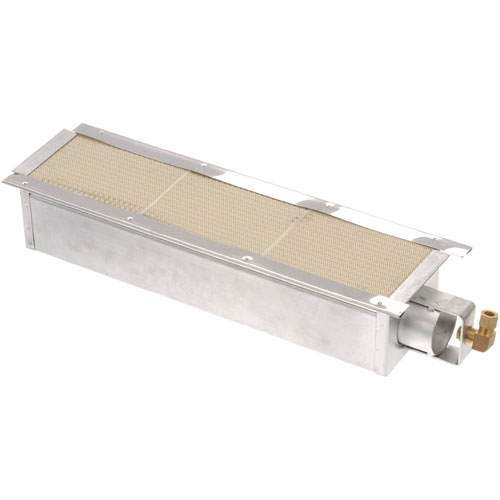

American Range 10620 Infra-Red Salamander Burner W/Ceramic Tiles 17-3/8" X 5-1/8"OD

SKU: 10620 1-10620 Brand:
American Range
Availability:
In Stock
(0)
$257.87 Price reduced from $494.00
Save $236.13
Have a Question? +1 (866) 863-0907

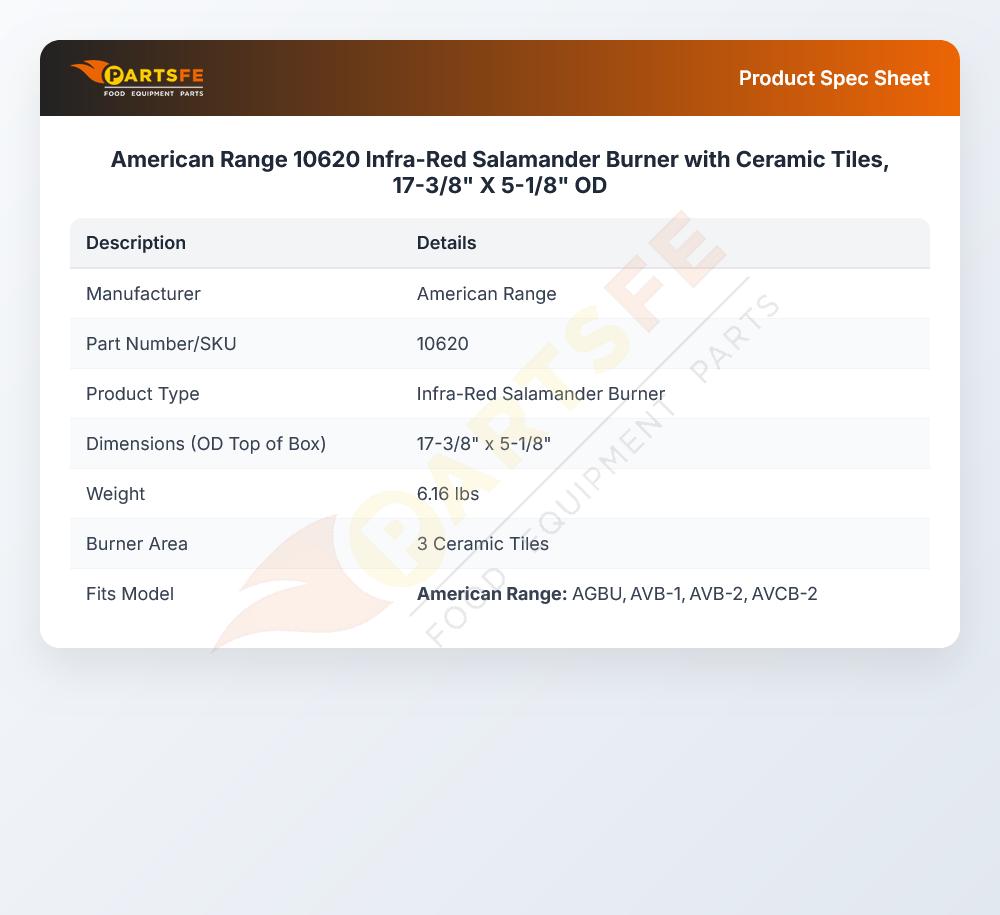

Specifications:

  • Infra-Red Salamander Burner
  • 17-3/8" X 5-1/8" Od Top Of Box, Weight 6.16 Lbs.
  • Burner Area - 3 Ceramic Tiles.
  • Includes Universal Orifice #48. ( 3/8" Mpt X 3/8" Cct )
  • Can Be Reamed Out To #42 For Nat Gas.
  • Oem #A29103, Ref# 10610 Spud Orifice #42 (Nat)
  • Oem #A29104, Ref# 10611 Spud Orifice #52 (Lpg)
  • American Range
  • Broiler Salamander Model Arsb
  • ***Verify The Size Of The Burner The Customer Is Ordering -
  • American Range Has Conflicting Information On Their Ir
  • Burners.
  • Cust May Need Part Number 263691.****

Description

The American Range 10620 Infra-Red Salamander Burner mixes gas and air before ignition, producing infrared heat that radiates through the ceramic tiles to cook or finish food under high temperatures. Measuring 17-3/8 inches by 5-1/8 inches OD, the burner distributes heat across its surface to support broiling, browning, and melting applications within the salamander unit. This burner is installed inside compatible commercial systems, where it operates as the primary heating component in the burner assembly for infrared cooking operations.

Dimensions:

  • Length: 17.5 in
  • Height: 5 in
  • Width: 5.25 in

AMERICAN RANGE:

A14016
