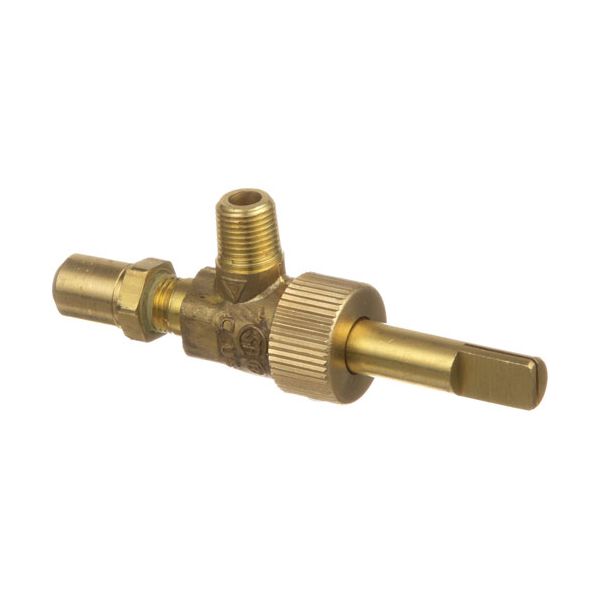

Garland 1087697 Top Burner Valve NPT In 1/8" Out 3/8"

Rating:
5 5 1
1  Review Add Your Review
Special Price $23.62 Regular Price $36.20
In stock
SKU
1087697
Add to Wish List
Griddle & Grill Parts, Burner Valves, Shop by manufacturers
Manufacturer:
The Garland 1087697 Top Burner Valve NPT In 1/8" Out 3/8" is used to regulate the flow of gas through the internal mechanism of the valve by turning it open and closing the passage between the inlet and outlet. When the valve stem is switched, it controls the amount of fuel to be delivered to the top burner based on the selected setup. This valve is attached to the gas supply line towards the top burner assembly, and it is connected with 1/8 in NPT inlet and 3/8 in NPT outlet fittings.

Dimensions

  • Length: 0.875 In
  • Width: 1.875 In
  • Height: 3.5 In
  • Weight: 0.2 lbs
https://partsfe.com/media/catalog/product/g/a/garland-1087697-top-burner-valve-npt-in-1-8-out-3-8-80431-2.jpg

Product Notes

  • ***For Vulcan Hart Use Ap# 8012180***
  • Gas In: 1/8" Npt~
  • Gas Out: 3/8-27. Off/On, #46 Hood Orifice
  • & Point, Adjustable, Brass
  • Not Push To Turn Stem: 1-3/16" Long~
  • D Stem 1/4". Knob
  • #22-1464 Or #22-1164 Depending On Model. Use #26-2937 To
  • Convert Valve To 3/8" Cct On Some Models.
  • Nat Orifice # 26-1117 Is #57, Nat Orifice # 26-1780 Is #56,
  • Lp Orifice # 26-1080 Is #72.
  • Anets Broiler Br34-3
  • Imperial Broiler Series: Eba, Gd, Icb, Icma, Irb, Isb, Msq,
  • Iab(E)(R)(S). Grill Series: Ihr, Imga.
  • Range Series: Icra, Ihpa, Ihr, Ir, Ispa.
  • Roaster Series: Ipr, Ipra.
More Information
Disable SaleableNo
Replaces Parts
ANETS:
BAKERS PRIDE:
MARSAL AND SONS:
PITCO:
Reviews 1
Write Your Own Review
You're reviewing:Garland 1087697 Top Burner Valve NPT In 1/8" Out 3/8"
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Garland 1087697 Top Burner Valve?

Clean and inspect the valve regularly to prevent grease buildup and ensure smooth rotation. Check for leaks and confirm proper flame control. Proper maintenance supports accurate heat adjustment and safe cooking operation.

What are the common issues with the Garland 1087697 Top Burner Valve?

  • Difficulty adjusting the flame due to internal wear.
  • Grease accumulation is affecting valve movement.
  • Inconsistent flame output.
  • Gas leakage from worn seals.
  • Delayed response when adjusting heat levels.
  • Blockages interfere with gas flow.
  • Overheating affecting internal components.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Shut off the gas supply at the main valve.

Step2: Remove the old top burner valve by loosening its connections.

Step3: Install the new valve in the correct position, aligning with the burner ports.

Step4: Tighten gas line connections and check all fittings for leaks.

Step5: Turn on gas and test burner ignition and flame quality.

Step6: Keep hands, clothing, and tools away from open flames while testing.
