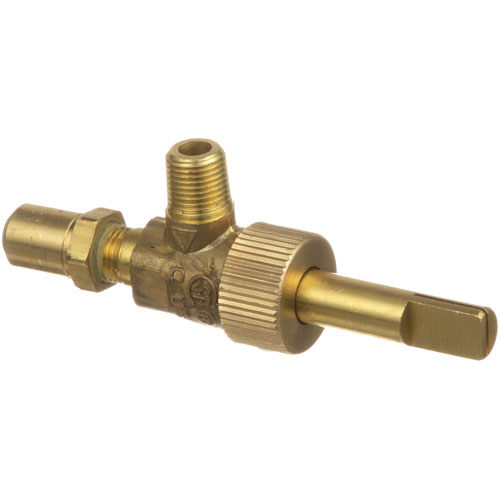

Garland 1087697 Top Burner Valve NPT In 1/8" Out 3/8"

SKU: 1087697 1-1087697 Brand:
Garland
Availability:
Out of Stock
(1)
$23.62 Price reduced from $36.20
Save $12.58
Have a Question? +1 (866) 863-0907

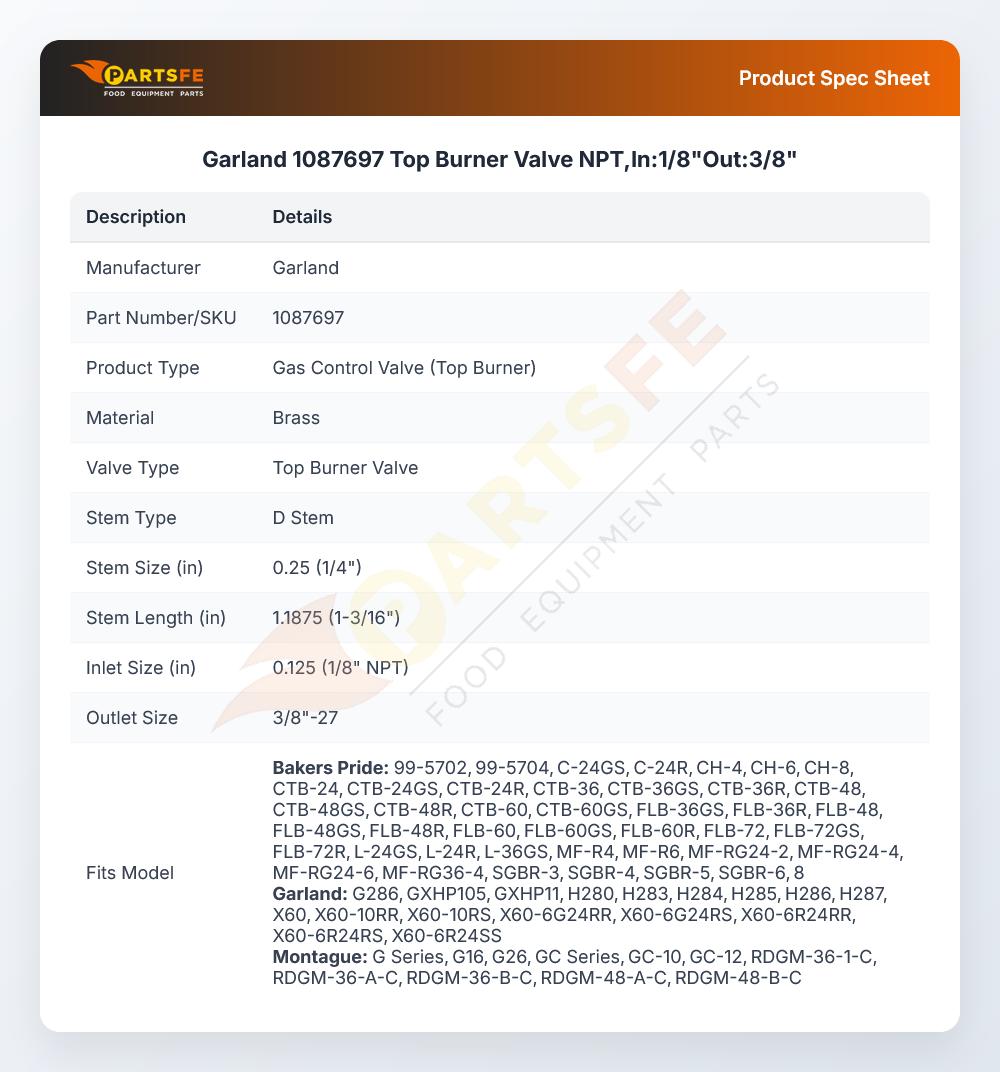

Specifications:

  • ***For Vulcan Hart Use Ap# 8012180***
  • Gas In: 1/8" Npt~
  • Gas Out: 3/8-27. Off/On, #46 Hood Orifice
  • & Point, Adjustable, Brass
  • Not Push To Turn Stem: 1-3/16" Long~
  • D Stem 1/4". Knob
  • #22-1464 Or #22-1164 Depending On Model. Use #26-2937 To
  • Convert Valve To 3/8" Cct On Some Models.
  • Nat Orifice # 26-1117 Is #57, Nat Orifice # 26-1780 Is #56,
  • Lp Orifice # 26-1080 Is #72.
  • Anets Broiler Br34-3
  • Imperial Broiler Series: Eba, Gd, Icb, Icma, Irb, Isb, Msq,
  • Iab(E)(R)(S). Grill Series: Ihr, Imga.
  • Range Series: Icra, Ihpa, Ihr, Ir, Ispa.
  • Roaster Series: Ipr, Ipra.

Description

The Garland 1087697 Top Burner Valve NPT In 1/8" Out 3/8" is used to regulate the flow of gas through the internal mechanism of the valve by turning it open and closing the passage between the inlet and outlet. When the valve stem is switched, it controls the amount of fuel to be delivered to the top burner based on the selected setup. This valve is attached to the gas supply line towards the top burner assembly, and it is connected with 1/8 in NPT inlet and 3/8 in NPT outlet fittings.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 0.88 in
  • Height: 3.5 in
  • Width: 1.88 in

ANETS:

P8900-27

BAKERS PRIDE:

R3032A R3032X

GARLAND:

1086588 227006 9005596 9005597 9005599 G4859-47A G4859-57F

MARSAL AND SONS:

V-107

MONTAGUE:

#34B 01005-7 01006-5 02403-1 1005-7 1006-5 14608-0 2403-1 34A 34B R35

PITCO:

P8900-27

RANDELL:

DRB-11 GB-07 RB-11 RDGM-08 RDHP-08 RDHP-8 RDHP-E-C-08 RDLR-10 SUHP-13 SUHP-E-C-13 TB-11 TB-11-A TB-11A TB-3-11 TB3-11

RANKIN DELUX:

DRB-11 GB-07 RB-11 RDGM-08 RDHP-08 RDHP-8 RDHP-E-C-08 RDLR-10 SUHP-13 SUHP-E-C-13 TB-11 TB-11-A TB-11A TB-3-11 TB3-11

Step1: Shut off the gas supply at the main valve.

Step2: Remove the old top burner valve by loosening its connections.

Step3: Install the new valve in the correct position, aligning with the burner ports.

Step4: Tighten gas line connections and check all fittings for leaks.

Step5: Turn on gas and test burner ignition and flame quality.

Step6: Keep hands, clothing, and tools away from open flames while testing.

  • What maintenance is required for the Garland 1087697 Top Burner Valve?

    Clean and inspect the valve regularly to prevent grease buildup and ensure smooth rotation. Check for leaks and confirm proper flame control. Proper maintenance supports accurate heat adjustment and safe cooking operation.

  • What are the common issues with the Garland 1087697 Top Burner Valve?

    • Difficulty adjusting the flame due to internal wear.
    • Grease accumulation is affecting valve movement.
    • Inconsistent flame output.
    • Gas leakage from worn seals.
    • Delayed response when adjusting heat levels.
    • Blockages interfere with gas flow.
    • Overheating affecting internal components.
