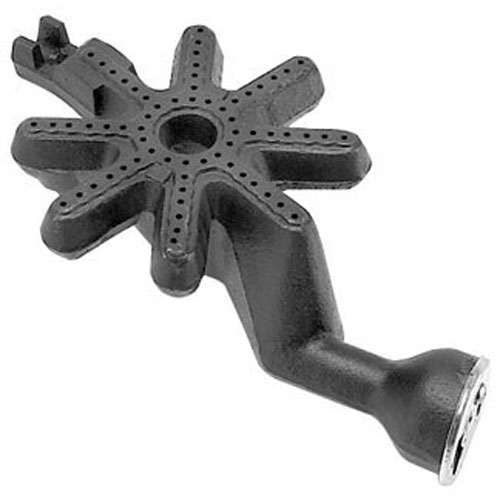

Garland 1089201 Range Front Top Burner 10-1/2" Cast Iron

SKU: 1089201 1-1089201 Brand:
Garland
Availability:
In Stock
(0)
$48.87 Price reduced from $87.27
Save $38.40
Have a Question? +1 (866) 863-0907

Specifications:

  • Cast Iron Front Top Burner
  • [ 10-1/2" ] [ Ci ] Air Shutter # 26-2156,
  • 5-1/2" Burn, 7 Holes Per Leg, 8 Legs
  • Garland
  • Range 43/50, 293, 297.
  • Series: G30A, G280 (Except
  • G280-2 And All Models Made After 1989).
  • *G280 Models Made After 1989 Use Oem # 1553898*

Description

The Garland 1089201 Range Front Top Burner 10-1/2" Cast Iron works by distributing gas uniformly over the burner surface and igniting it with the built-in spark system. It has a steady fire on the top to be used in cooking. This burner can be fitted at the front of the cooking unit and aligns with existing connections to fit in. It enables to fit well with other parts on the stovetop, which provides adequate spacing and allows it to operate. It fits well with commercial kitchen layouts, and it does not interfere with the overall cooking setup and layout.

Dimensions:

  • Weight: 5.29 lbs
  • Length: 11.25 in
  • Height: 6.5 in
  • Width: 6.5 in

GARLAND:

1089201-GAR 1089289 1089299 G3801 GL1089201 GL1089299

Step1: Turn off gas supply and allow the appliance to cool completely before starting.

Step2: Remove the cooking grates and lift out the old burner assembly.

Step3: Clean the burner chamber and inspect gas inlet for debris or damage.

Step4: Position the new burner with air shutter correctly over the gas orifice.

Step5: Secure the burner firmly and ensure proper alignment with the inlet.

Step6: Reinstall grates, turn on gas, and test ignition and flame quality.
