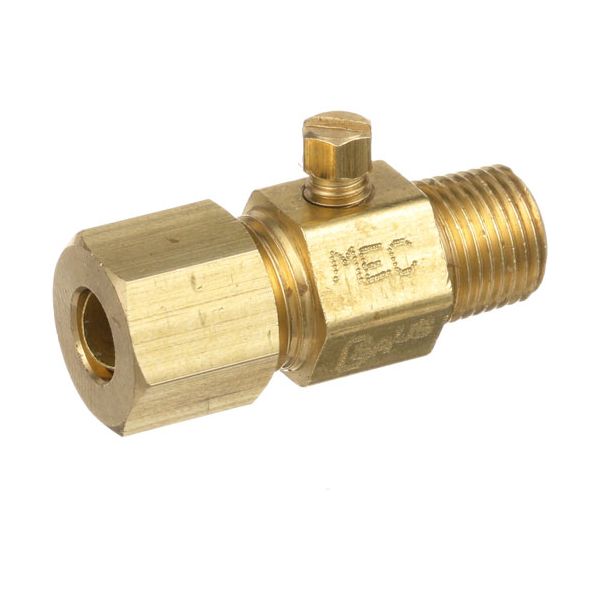

main product photo

Southbend 1099002 Gas Griddle Pilot Adjustment Valve W/1/8" MPT X 1/4" CCT 1-3/16" W

Rating:
5 5 1
1  Review Add Your Review
$9.78
In stock
SKU
1099002
Add to Wish List
Griddle & Grill Parts, Pilot Safety Valves,
Manufacturer:
The Southbend 1099002 Oven Pilot Adjustment Valve regulates the amount of gas that passes to the pilot burner by rotating an adjustable screw that changes the size of the gas opening, which enables one to set the pilot flame to a specific height. The adjustment mechanism closes or opens the internal valve as the adjustment mechanism is turned to alter the quantity of gas supplied to the pilot assembly. It has a 1/8 inch MPT inlet and a 1/4" compression outlet with a 1-3/16" body width. This valve is installed in the gas supply line.

Dimensions

  • Length: 0.5 In
  • Width: 1 In
  • Height: 1.5 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/s/o/southbend-1099002-pilot-adjustment-valve-w-1-8-mpt-x-1-4-cct-1-3-16-width-50056-2.jpg

Product Notes

  • Pilot Adjustment Valve
  • [ 1/8" Mpt X 1/4" Cct ] [Width 1-3/16" ], Straight,
  • Adjustable
ANETS:
BLODGETT:
CECILWARE:
CHG:
CHGG34-6460, G34-6460
COMSTOCK CASTLE:
GRINDMASTER:
JADE RANGE:
PITCO:
RANKIN DELUX:
STAR MFG:
2V-70402-06, 2V-70402-06 N, 2V-Y1177, Y1177
Reviews 1
Write Your Own Review
You're reviewing:Southbend 1099002 Gas Griddle Pilot Adjustment Valve W/1/8" MPT X 1/4" CCT 1-3/16" W
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Southbend 1099002 Pilot Adjustment Valve?

Inspect and clean the pilot adjustment valve regularly to prevent carbon buildup and blockages. Check all fittings for gas leaks and ensure tight connections. Lubricate moving parts lightly to maintain smooth adjustment and safe operation.

What are common issues with the Southbend 1099002 Pilot Adjustment Valve?

  • Gas leakage from worn seals.
  • Pilot flame instability due to clogging.
  • Difficulty adjusting valve due to debris.
  • Corrosion in valve body.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas and power supply and allow unit to cool completely before servicing.

Step2: Remove access panel and disconnect existing pilot adjustment valve carefully.

Step3: Apply approved thread sealant to fittings.

Step4: Install new valve, tightening securely without over-torquing connections.

Step5: Restore gas, check for leaks using soap solution, and test pilot flame adjustment.

Step6: Reassemble panel and verify safe operation.
