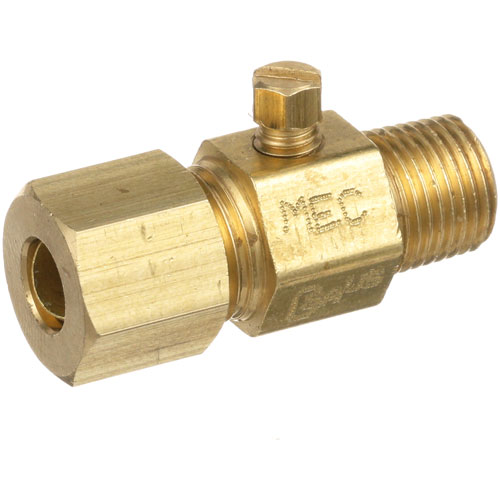

Southbend 1099002 Gas Griddle Pilot Adjustment Valve W/1/8" MPT X 1/4" CCT 1-3/16" W

SKU: 1099002 1-1099002 Brand:
Southbend
Availability:
In Stock
(1)
$11.16
Have a Question? +1 (866) 863-0907

Specifications:

  • Pilot Adjustment Valve
  • [ 1/8" Mpt X 1/4" Cct ] [Width 1-3/16" ], Straight,
  • Adjustable

Description

The Southbend 1099002 Oven Pilot Adjustment Valve regulates the amount of gas that passes to the pilot burner by rotating an adjustable screw that changes the size of the gas opening, which enables one to set the pilot flame to a specific height. The adjustment mechanism closes or opens the internal valve as the adjustment mechanism is turned to alter the quantity of gas supplied to the pilot assembly. It has a 1/8 inch MPT inlet and a 1/4" compression outlet with a 1-3/16" body width. This valve is installed in the gas supply line.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 0.5 in
  • Height: 1.5 in
  • Width: 1 in

ANETS:

P8901-78

BLODGETT:

Z1099002 ZP2133

CECILWARE:

F019A F019F GMF019A GMF019F

CHG:

CHGG34-6460 G34-6460

COMSTOCK CASTLE:

14ADJ 25015 COM14ADJ COM25015

GARLAND:

1086502 1086596 G03674-3 G6809 G6928-1 GL1086502 GL1086596 GLG03674-3 GLG6809

GRINDMASTER:

F019A F019F

HOBART:

00-404738-00003 00-719179 00-844516-00014 104738-3 404738-00003 404738-3 719179 802161 844516-00014 844516-14

JADE RANGE:

4410400000

LANG:

2V-70402-06 70402-06

MONTAGUE:

01051-0 1051-0 22818-4 CB-6

PITCO:

P8901-78

RANDELL:

GB-05 HD GAS651 HDGAS651

RANKIN DELUX:

GB-05

SOUTHBEND:

P2133 SOU1099002 SOUP2133

STAR MFG:

2V-70402-06 2V-70402-06 N 2V-Y1177 Y1177

VULCAN HART:

00-404738-00003 00-719179 00-844516-00014 104738-3 404738-00003 404738-3 719179 802161 844516-00014 844516-14 VH104738-3 VH404738-3 VH844516-14

Step1: Turn off gas and power supply and allow unit to cool completely before servicing.

Step2: Remove access panel and disconnect existing pilot adjustment valve carefully.

Step3: Apply approved thread sealant to fittings.

Step4: Install new valve, tightening securely without over-torquing connections.

Step5: Restore gas, check for leaks using soap solution, and test pilot flame adjustment.

Step6: Reassemble panel and verify safe operation.

  • What maintenance is required for the Southbend 1099002 Pilot Adjustment Valve?

    Inspect and clean the pilot adjustment valve regularly to prevent carbon buildup and blockages. Check all fittings for gas leaks and ensure tight connections. Lubricate moving parts lightly to maintain smooth adjustment and safe operation.

  • What are common issues with the Southbend 1099002 Pilot Adjustment Valve?

    • Gas leakage from worn seals.
    • Pilot flame instability due to clogging.
    • Difficulty adjusting valve due to debris.
    • Corrosion in valve body.
