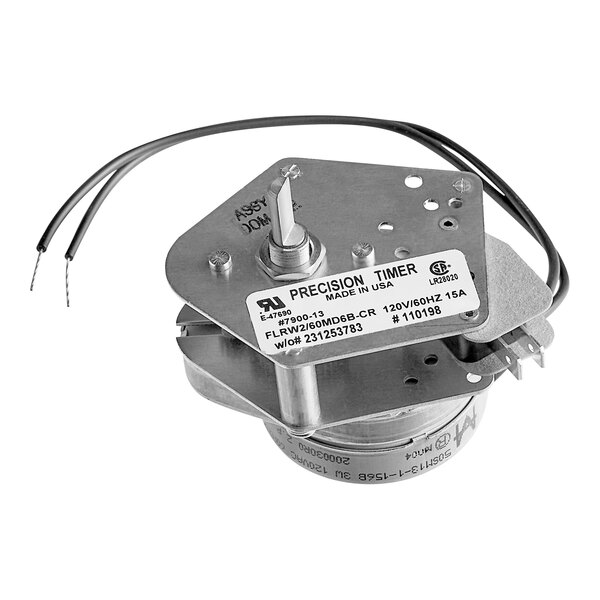

Cleveland 110198 60 Min Timer 120V

Equipment Control:
Controls the duration of the steamer's operating cycle by measuring a preset time interval and actuating the internal switching mechanism when the selected time has elapsed. Its motor-driven mechanism advances the timer through the set cycle at a consistent rate while supplying timed control to the connected electrical circuit. During operation, the timer works with the equipment's control system to start, maintain, and conclude the steaming cycle according to the selected setting. Accurate timing supports repeatable cooking processes and allows the steamer to operate through controlled cycle durations without continuous operator supervision.

Signal Processing:
Converts the selected time setting into controlled electrical switching within the equipment's control circuit. As the motor-driven mechanism advances through the timing cycle, it changes the state of its internal contacts at predetermined intervals to transmit control signals to connected components. These timed signals coordinate the start and end of the operating cycle and synchronize equipment functions according to the selected duration. Consistent signal transmission allows the control system to execute timed operations in the correct sequence while maintaining predictable equipment performance.

Replacement Guidelines:
Replace the mechanical timer-driven motor when wear, physical damage, deterioration, or electrical failure affects its ability to maintain the intended timing function. The part number 110198 should be verified before replacement to ensure the correct timer is selected. Replace the component when its condition affects timing response, control operation, or its intended function within the steamer control system.

Common Failure Symptoms:

• Timer does not advance through the selected time interval
• Cycle timing is inconsistent with the selected setting
• Time-controlled equipment functions do not operate as expected
• Irregular timer movement during operation
• Steaming cycles do not follow the selected timing sequence

Equipment Compatibility:
Designed for use with Cleveland commercial convection steamers, the 110198 mechanical motor-driven timer is intended for equipment requiring the corresponding timer configuration. Confirm the equipment model number, existing component identification, and manufacturer’s parts documentation before selecting.

Technical Specifications:
Brand: Cleveland
Part Number: 110198
Component Name: Mechanical Timer Driven Motor
Equipment Type: Commercial Convection Steamer
Voltage: 120V
Frequency: 60Hz

Step1: Disconnect power to the unit to avoid electrical shock.

Step2: Remove the control panel to access the timer assembly.

Step3: Disconnect wiring from the old timer, noting terminal positions.

Step4: Install the new timer and secure it with mounting hardware.

Step5: Reconnect wiring to the correct terminals.

Step6: Restore power and test timer function for proper operation.

• What maintenance is required for the Cleveland 110198 Timer?

  Regularly test the timer to confirm accurate countdown operation. Inspect electrical connections for wear or looseness. Clean the dial and housing to prevent dust buildup. Ensure the mechanism rotates smoothly and activates properly during each timing cycle.

• What are the common issues with the Cleveland 110198 Timer?

  • Timer failing to start or stop connected equipment
  • Electrical connection faults are causing intermittent operation
  • Buzzing or humming noises during operation
  • Timer resets unexpectedly or loses set time
  • Overheating or warm housing due to electrical load.

• What are common issues with the Cleveland 110198 Timer?

  • Timer not counting down correctly.
  • Dial sticking or difficult to turn.
  • Timer failing to activate connected equipment.
  • Timer stopping before reaching zero.

• What is the Cleveland 110198 timer-driven motor used for?

  The Cleveland 110198 drives the mechanical timer mechanism in a convection steamer. Its rotation allows the timer assembly to progress through the selected steaming period.

• How does a timer-driven motor support a convection steamer cycle?

  The motor provides continuous mechanical movement to the timer during operation. This allows the mechanical timing mechanism to control the duration of the steamer cycle.

• What makes the Cleveland 110198 a mechanical timer motor?

  The Cleveland 110198 is designed to drive a mechanical timing mechanism rather than directly power the steamer's heating or cooking components. Its purpose is specifically associated with timed mechanical control.

• What do 120V and 60Hz indicate for the Cleveland 110198?

  The 120V and 60Hz designations identify the electrical supply requirements of the timer-driven motor. These values help buyers distinguish the correct motor configuration for the steamer.

• Does the Cleveland 110198 timer motor require regular maintenance?

  The available product information does not specify a routine maintenance procedure for this timer motor. Its condition can be reviewed when the mechanical timer stops advancing or operates inconsistently.
