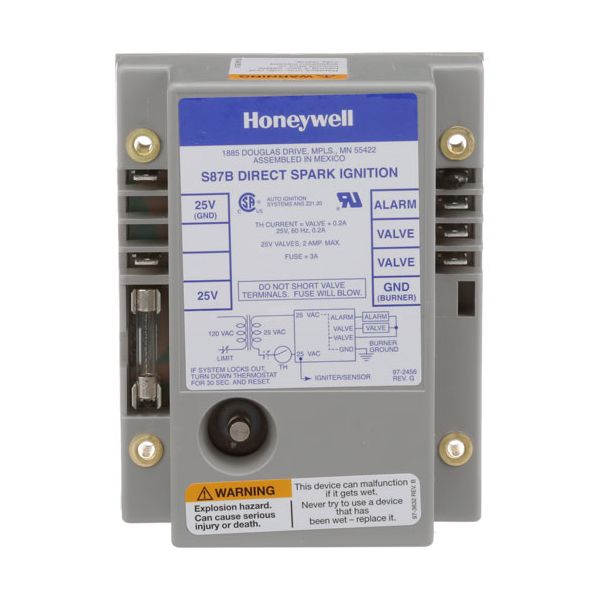

main product photo

Hobart 116011-1 Direct Spark Ignition Module/ 4 Sec Lockout 25V

Be the first to review this product
Special Price $215.75 Regular Price $481.14
Out of stock
SKU
116011-1
Add to Wish List
Electrical & Hardware, Ignition Modules,
Manufacturer:
The Hobart 116011-1 Direct Spark Ignition Module is a high efficiency system for commercial cooking equipment specifically within the food service industry. This module operates on 25V and has a 4 second lockout, using single electrode for flame detection and spark ignition. It has a compact design measuring 4" x 5-1/16" with a spark terminal top, five 1/4" tab terminals and a 3 amp fuse for better performance. This ignition module is compatible with Cleveland skillets and steamer convection models 9-PCDM-L, 9-PCEM-48-L, gas steam generators and Vulcan Hart fryers.

Dimensions

  • Length: 4.5 In
  • Width: 6.25 In
  • Height: 3.5 In
  • Weight: 1.2 lbs
https://partsfe.com/media/catalog/product/h/o/hobart-116011-1-direct-spark-ignition-module-4-sec-lockout-25v-85453-2.jpg

Product Notes

  • Honeywell
  • 25V Direct Spark Ignition Module, 4 Sec Lockout,
  • Uses Single Electrode For Flame Sensing And Spark Ignition
  • 4" X 5-1/16", Rajah Spark Terminal On Top.
  • 5Ea 1/4" Tab Terminals. 3 Amp Fuse (381050)
  • Cleveland Skillet T7Es.
  • Steamer Convection Steamer: 9-Pcdm-L, 9-Pcem-48-L,
  • 9-Pcgm-250-L, 9-Pcgm-300-L, 9-Pcsm-L,
  • Gas Steam Generators: 2 Probe Type Units (Large & Small).
  • Vulcan Hart Fryer Series: Ccfd.
CLEVELAND:
3546, CLE03546, CLE3546
Reviews
Write Your Own Review
You're reviewing:Hobart 116011-1 Direct Spark Ignition Module/ 4 Sec Lockout 25V
Your Rating
FAQS
Customer Questions
What maintenance is required for the Hobart 116011-1 Direct Spark Ignition Module?

Check wiring for corrosion or looseness. Keep the module clean and dry. Verify consistent spark during operation testing. Ensure proper grounding to maintain safe and accurate ignition performance.

What are the common issues with the Hobart 116011-1 Direct Spark Ignition Module?

  • No spark during ignition cycle.
  • Intermittent firing failure.
  • Corroded electrical connections.
  • Overheating of module components.
  • Incorrect ignition timing.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power and gas supply before servicing.

Step2: Remove old ignition module and label wiring connections carefully.

Step3: Mount new ignition module securely in control panel.

Step4: Reconnect wires per schematic, ensuring polarity and flame sensor correct.

Step5: Restore power, test ignition sequence and confirm lockout safety operation.
