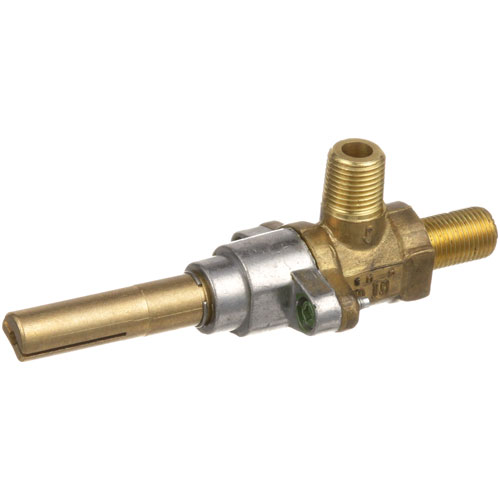

Southbend 1176004 Range Burner Valve 1/8"MPT X 3/8"-27

SKU: 1176004 1-1176004 Brand:
Southbend
Availability:
Out of Stock
(0)
$45.47 Price reduced from $72.18
Save $26.71
Have a Question? +1 (866) 863-0907

Description

The Southbend 1176004 Range Burner Valve is a gas control part that is installed in commercial ranges to control the flow of fuel to single burners. It has a 1/8 in MPT inlet with a 3/8 in-27 outlet that provides a secure connection in the gas line assembly. This valve enables better control of gas output making the burner consistent in its heat distribution. It is an vital component to provide safe and accurate operation and consistent cooking performance in the food service settings.

Dimensions:

  • Weight: 0.19 lbs
  • Length: 3.63 in
  • Height: 1.25 in
  • Width: 1.25 in

SOUTHBEND:

1176005 SOU1176004

Step1: Turn off gas supply and disconnect power.

Step2: Remove control panel to access burner valve.

Step3: Unscrew old valve and disconnect gas line.

Step4: Install new valve using correct orientation and thread sealant.

Step5: Tighten all connections securely.

Step6: Reassemble panel and restore gas supply.

Step7: Test for leaks with soapy water and light burner.

Step8: Ensure safety gloves and goggles are worn.

  • What maintenance is required for the Southbend 1176004 Burner Valve?

    Inspect range valve body and connection threads for gas leakage signs and tighten fittings as required. Ensure smooth rotation of the control stem without binding. Clean carbon buildup around ports and verify proper alignment with burner assembly during operation.

  • What are common issues with the Southbend 1176004 Burner Valve?

    • Gas flow restriction due to internal clogging.
    • Difficulty turning valve stem.
    • Leakage at threaded connections.
    • Inconsistent flame adjustment.
    • Worn seals causing pressure drop.
    • Improper burner alignment leading to uneven combustion or ignition delay.
