Southbend 1177447 Range Front Pilot Tube Assembly

Q: What is the Best Electric Griddle?

Electric Griddle is electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware.

Rating:

10 Reviews Add Your Review

Special Price $88.36 Regular Price $136.15

In stock

SKU

1177447

Categories: Griddle & Grill Parts, Pilot Burners,

Manufacturer:

Southbend

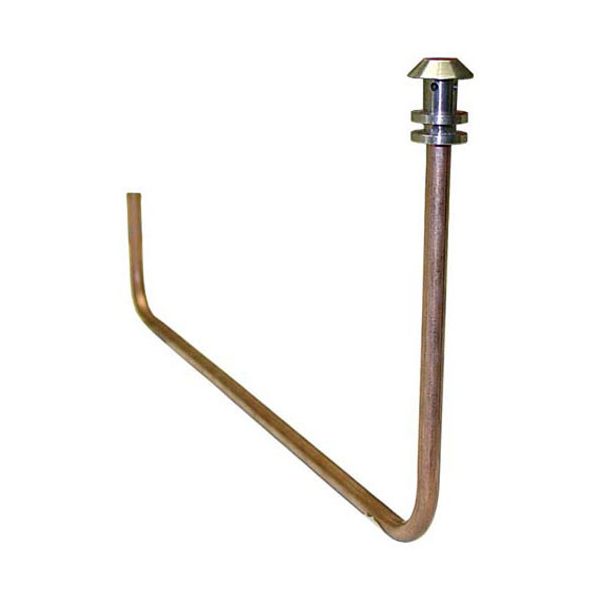

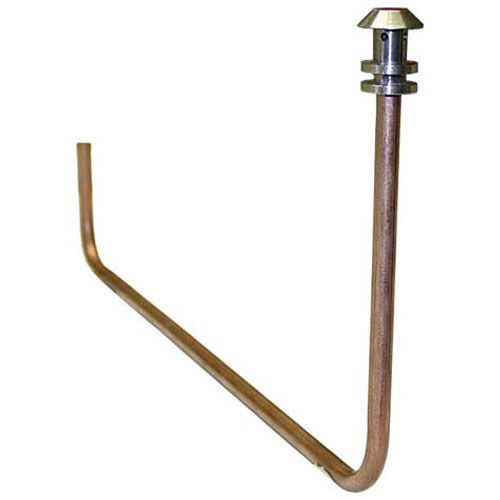

The SouthBend 1177447 Range Front Pilot Tube Assembly 9-5/16" X 1-5/8" X 4" is a gas delivery component used in range equipment to direct gas flow toward the front pilot burner section during operation. It is installed within the burner assembly, where it connects pilot fittings, gas supply lines and ignition components. This tube assembly integrates with the range structure and remains active during heating cycles in commercial cooking conditions. It is commonly used in restaurant kitchen ranges it contributes, to maintaining pilot flame distribution for connected burners during daily operation.

Dimensions

Weight: 0.3 lbs

Details

The pilot burner assembly in commercial gas ranges provides a steady pilot flame to help ignite the main burners. It includes the pilot tip and tubing, which direct gas flow within the burner system. Measuring approximately 9-5/16" x 1-5/8" x 4", it is designed for use in compatible range systems and requires a 3/16" compression nut and sleeve for proper installation. By maintaining a stable pilot flame, this assembly supports reliable burner ignition during operation. Commonly used in commercial kitchens such as restaurants and other foodservice facilities, it plays an important role in daily cooking operations. Over time, wear, clogging, or damage may affect pilot performance and cause ignition issues. Replacing a worn or faulty pilot burner assembly can help restore proper ignition and support consistent heating performance.

Equipment Compatibility:
Consistent burner ignition support for Southbend Range Front Pilot Tube Assembly includes commercial gas ranges used in restaurants, cafeterias, and high-demand foodservice kitchens where a stable pilot flame is required for safe and reliable burner startup. This Range Front Pilot Tube Assembly 1177447 is compatible with commercial equipment from leading brands such as Southbend, and more, specifically within 300 and 400 series ranges starting with serial number 99A and above, where dependable pilot flame delivery is required for consistent ignition and safe cooking performance.

Brand Compatibility:
This pilot tube assembly replaces select original part numbers used in compatible commercial range systems. Full cross-reference details are provided separately.

Product Specifications:
Product Type: Range Front Pilot Tube Assembly
Manufacturer: Southbend
SKU: 1177447
Dimensions: 9 5/16" x 1 5/8" x 4"
Includes: Pilot tip and tube
Connection Requirement: 3/16" compression nut and sleeve
Application: Gas range pilot burner system

Key Features:

Provides a steady pilot flame to support safe and reliable burner ignition.
Includes both pilot tip and tubing for proper gas direction within the burner system.
Designed with specific dimensions (9 5/16" x 1 5/8" x 4") to fit compatible range models accurately.
Requires a 3/16" compression fitting to ensure secure and proper installation.
Replacing a worn pilot assembly helps restore consistent ignition and prevents burner lighting issues.

Users frequently report improved pilot flame stability and more reliable burner ignition after replacement.

Replaces Parts

SOUTHBEND:

1177447, SOU1177447

Reviews 10

Write Your Own Review

FAQS

Customer Questions

What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Can a faulty front pilot assembly affect other parts of my stove or range?

Yes, a malfunctioning front pilot assembly can impact the overall performance of your stove or range. Ignition issues may lead to incomplete combustion, affecting cooking efficiency and potentially posing safety risks.

How often should I replace the front pilot assembly in my stove or range?

The lifespan of a front pilot assembly can vary based on usage and the appliance's overall condition. If you notice issues with ignition or if the assembly is visibly damaged, it's advisable to replace it promptly.

Can I install the front pilot assembly myself, or do I need professional help?

Installation procedures can vary, so it's recommended to consult your stove or range's user manual. In many cases, replacing the front pilot assembly is a task that can be done by the user, but if you're unsure or uncomfortable, seeking professional assistance is advisable.

What maintenance is required for the Southbend 1177447 Front Pilot Tube Assembly?

Inspect the pilot tube regularly for blockages, cracks, or carbon buildup to ensure consistent gas flow and ignition. Clean the assembly with approved tools and check connections for tight seals to prevent leaks. Perform routine safety checks to detect gas odor or flame irregularities and replace damaged components promptly.

What are common issues with the Southbend 1177447 Front Pilot Tube Assembly?

Clogging from food debris or grease.
Corrosion or rusting of the tube.
Weak or inconsistent flame.
