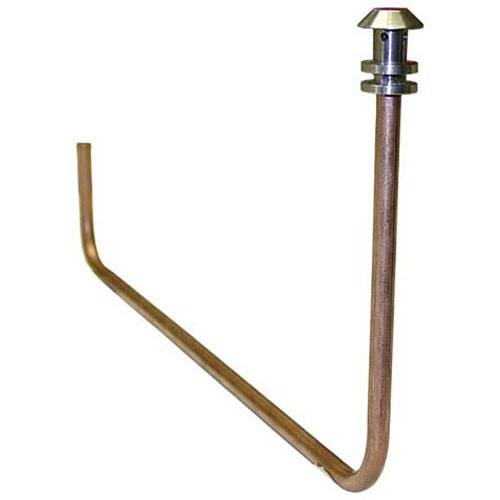

Southbend 1177447 Range Front Pilot Tube Assembly

Pilot Gas Routing:
Gas travels through the dedicated tubing path from the supply connection toward the front pilot location. The routing establishes the required passage between the gas source and pilot burner while directing fuel to the designated ignition point. This arrangement keeps the pilot gas pathway aligned with the front burner position.

Pilot Burner Connection:
At the burner end, the tubing interfaces with the front pilot assembly to deliver fuel at the designated ignition location. Its connection establishes the link between the incoming gas path and the pilot burner, allowing the supplied fuel to reach the point where pilot operation occurs. This positioning supports the intended relationship between the tubing and front pilot assembly.

Replacement Guidelines:
Replacement of the 1177447 Range Front Pilot Tube Assembly is recommended when the tube shows physical damage, leakage, blockage, or deterioration that affects pilot gas delivery. Replace the assembly when these conditions interfere with the intended gas path between the supply connection and front pilot burner.

Common Failure Symptoms:

• Pilot flame does not establish normally.
• Pilot flame becomes weak or inconsistent.
• Burner ignition becomes intermittent.
• Pilot tube assembly shows visible damage or deterioration.
• Main burner ignition does not respond normally to the pilot flame.

Equipment Compatibility:
The 1177447 Range Front Pilot Tube Assembly is intended for applicable commercial range equipment requiring the specified front pilot tube configuration. Confirm the equipment model number, existing pilot tube assembly identification, and manufacturer's parts documentation before selecting the component.

Technical Specifications:
Brand: Southbend
Part Number: 1177447
Product Type: Front Pilot Tube Assembly
Equipment Type: Commercial Range

Step1: Turn off the range and shut off the gas supply.

Step2: Remove the burner grates and existing pilot tube assembly.

Step3: Clean the burner area to remove debris and ensure proper seating.

Step4: Install the new pilot tube assembly, aligning it with the burner ports.

Step5: Secure the assembly with screws or brackets as required.

Step6: Turn on the gas, ignite the pilot, and test for proper flame and operation.

• Can a faulty front pilot assembly affect other parts of my stove or range?

  Yes, a malfunctioning front pilot assembly can impact the overall performance of your stove or range. Ignition issues may lead to incomplete combustion, affecting cooking efficiency and potentially posing safety risks.

• How often should I replace the front pilot assembly in my stove or range?

  The lifespan of a front pilot assembly can vary based on usage and the appliance's overall condition. If you notice issues with ignition or if the assembly is visibly damaged, it's advisable to replace it promptly.

• Can I install the front pilot assembly myself, or do I need professional help?

  Installation procedures can vary, so it's recommended to consult your stove or range's user manual. In many cases, replacing the front pilot assembly is a task that can be done by the user, but if you're unsure or uncomfortable, seeking professional assistance is advisable.

• What maintenance is required for the Southbend 1177447 Front Pilot Tube Assembly?

  Inspect the pilot tube regularly for blockages, cracks, or carbon buildup to ensure consistent gas flow and ignition. Clean the assembly with approved tools and check connections for tight seals to prevent leaks. Perform routine safety checks to detect gas odor or flame irregularities and replace damaged components promptly.

• What are common issues with the Southbend 1177447 Front Pilot Tube Assembly?

  • Clogging from food debris or grease.
  • Corrosion or rusting of the tube.
  • Weak or inconsistent flame.
  • Gas leaks from loose fittings.

• What is the Southbend 1177447 front pilot tube assembly used for?

  The Southbend 1177447 provides the designated gas passage between the applicable gas-control components and the front pilot burner in compatible commercial ranges.

• What does the "front pilot" designation mean?

  The "front pilot" designation identifies the tube assembly intended for the front pilot location within the compatible range configuration.

• How does the pilot tube connect the gas-control system to the pilot burner?

  The tube provides a continuous passage between the connected gas-control section and the front pilot burner, following the specified routing within the range.

• Which part of the range does the pilot tube assembly belong to?

  The assembly belongs to the range's pilot gas delivery system, where it interfaces with the gas-control and front pilot components.

• What is the difference between a front pilot tube and other pilot tube configurations?

  A front pilot tube is configured specifically for the front pilot location, with its routing and connections corresponding to the applicable range assembly.
