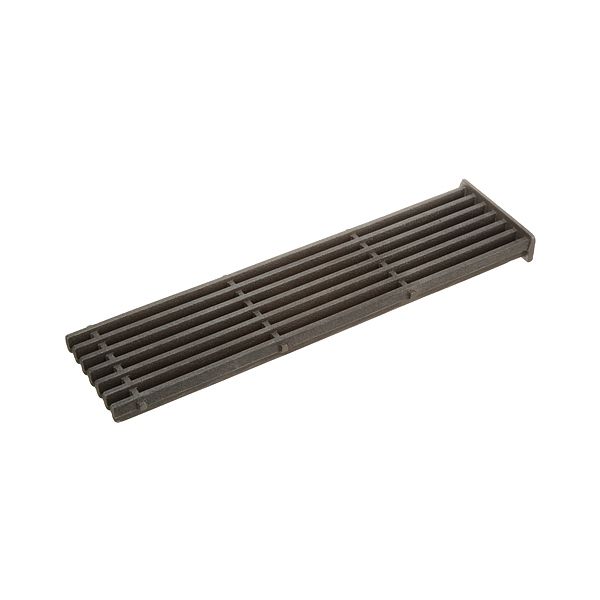

Positioned above the burner assembly, the Southbend 1178976 Range Top Grate 22" x 6" provides the cooking surface used for placing food during charbroiling operations. The grate supports food items while allowing heat from the burners to reach the cooking area. Located within the charbroiler assembly, it serves as the upper cooking surface where grilling and searing processes take place during normal equipment operation. It functions as a structural component that supports direct food contact during cooking applications.
Cooking Surface:
Provides a stable cooking surface above the burner assembly for direct food contact during charbroiling. The open grate design allows heat to rise through the grate bars while maintaining proper spacing between the food and the heat source. This construction supports consistent heat exposure, promotes grease drainage during cooking, and produces the characteristic grill marks associated with charbroiled food.
Grate Configuration:
Defines the physical arrangement and size of the top grate within the range of charbroiler assembly. The dimensions establish the specified configuration and distinguish this grate from other top-grate sizes. The grate is configured as the upper component of the charbroiler assembly, providing a defined surface layout over the heating area. This configuration identifies the component's intended position and physical arrangement within the applicable charbroiler structure.
Replacement Guidelines:
Replace the top grate if it is cracked, warped, excessively worn, or no longer provides a stable cooking surface. The part number 1178976 should be verified before replacement to ensure the correct grate is selected. Replace the component if deterioration affects cooking surface stability, food support, or normal charbroiler operation.
Common Failure Symptoms:
- Cracks or fractures in the cooking grate
- Warped grate that no longer sits level on the charbroiler
- Worn or uneven grate bars from extended use
- Uneven cooking caused by inconsistent food contact
- Food does not rest evenly across the cooking surface
Equipment Compatibility:
Designed for use with Southbend commercial Range, the 1178976 top grate is intended for equipment requiring the corresponding 22" x 6" grate configuration. Confirm the equipment model number, existing component identification, and manufacturer’s parts documentation before selecting.
Technical Specifications:
Product Name: Top Grate
Part Number: 1178976
Brand: Southbend
Dimensions: 22" x 6"
Appliance Type: Commercial Range
