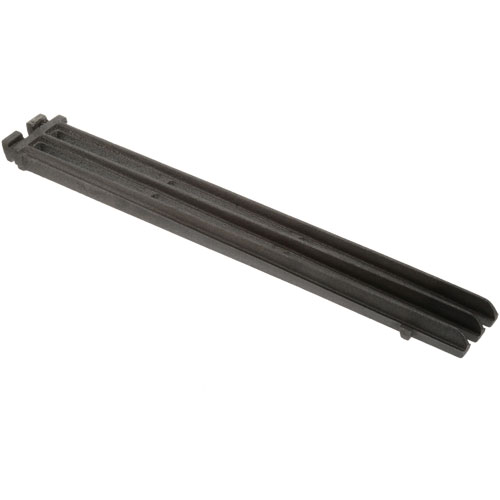

Imperial 1201 Range Cast Iron Top Grate 3 Bar 3" x 21"

A cast iron broiler grate used in commercial grilling and broiling systems, this component forms a structured cooking surface designed for direct heat exposure. It measures 21-1/2" overall length with a 3" width and a 20-3/4" usable section excluding legs, and includes a reversible layout with cross bars and ribs for extended usability. This grate is typically used in commercial broiler equipment where high-heat cooking is required for meat and similar menu items. The cast iron body helps maintain steady heat transfer across the surface, while the reversible design allows continued use as wear develops. When an existing grate becomes bent, uneven, or no longer sits correctly, replacing it can restore proper surface contact and improve cooking contact with the heat source.

Equipment Compatibility:
Installation for Imperial broiler grates is commonly required in commercial charbroilers and heavy-duty broiling stations used in restaurant kitchens and institutional foodservice operations where direct flame cooking is essential. This Broiler Grate 1201 is compatible with commercial equipment from brands such as Garland and Imperial, and others, where a stable cooking surface is needed for broiling applications.

Brand Compatibility:
Replaces multiple part numbers across various commercial broiler equipment brands, including Garland and Imperial. Refer to the “Replaces Parts” section for complete cross-reference details.

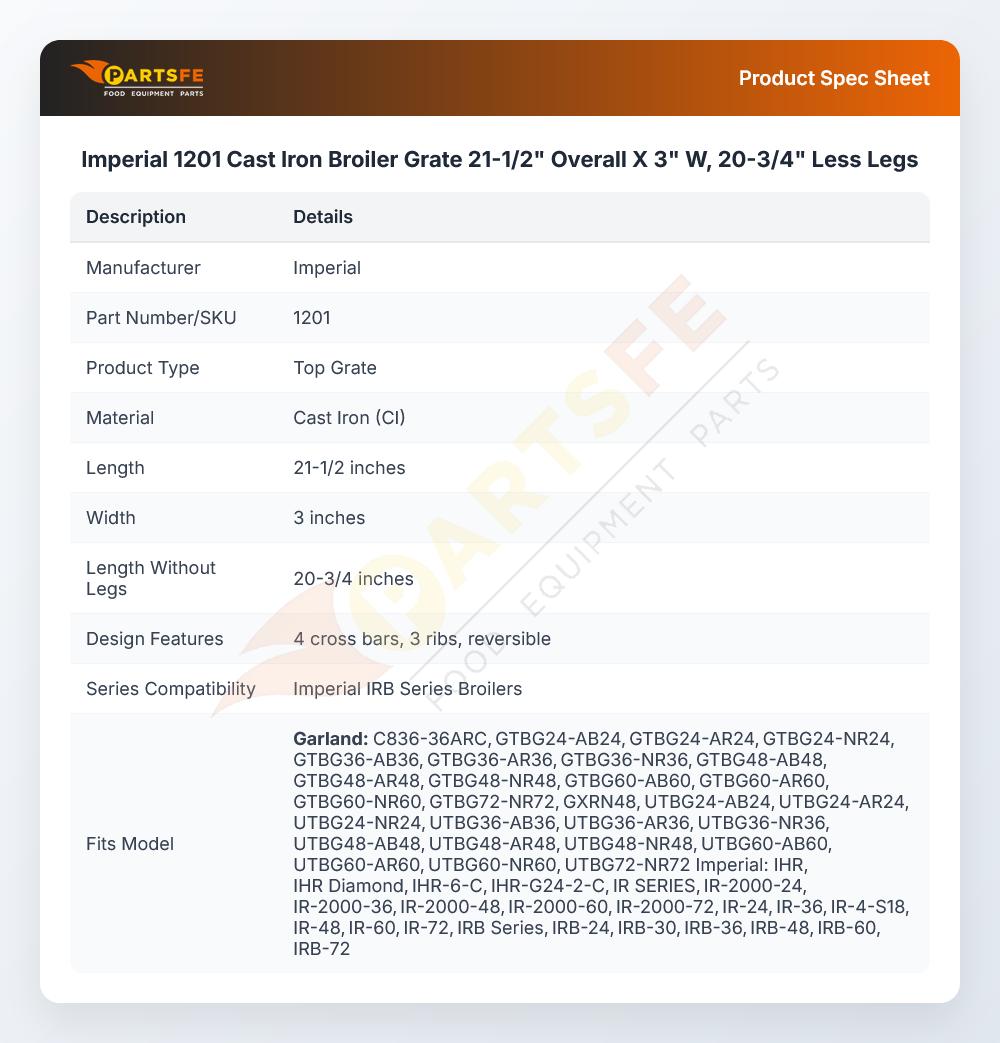

Product Specifications:
Manufacturer: Imperial
SKU: 1201
Product Type: Broiler Grate
Material: Cast Iron
Overall Size: 21-1/2" x 3"
Usable Length: 20-3/4" (Less Legs)
Design: Reversible with Cross Bars and Ribs
Application: Commercial Broiler Systems

Key Features:
Cast iron broiler grate built for direct flame cooking surfaces in commercial broiler units. 21-1/2" overall size with 3" width and 20-3/4" usable length for compatible grill layouts. Reversible design with cross bars and ribs for standard broiling configuration use. Supports food placement over open burners in heavy-duty cooking environments. Designed for replacement use when the existing grate becomes worn, bent, or uneven.
