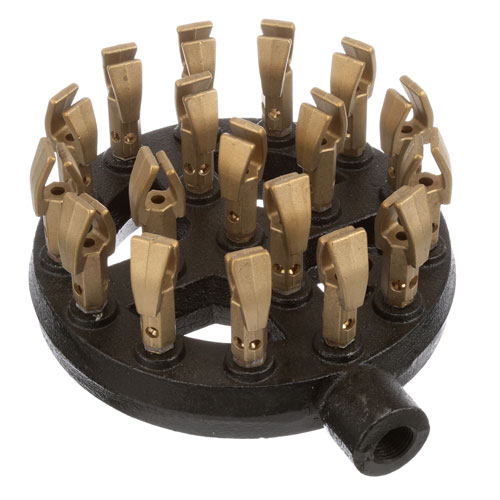

ROYAL RANGE 1302 Jet Burner W/18 Duck JETS 8" DIA

Used as a heat-generating burner assembly in commercial gas cooking equipment, this natural gas jet burner distributes fuel through 18 duck jet nozzles to generate consistent flame coverage and heat output for cooking applications. Constructed from cast iron and measuring approximately 7-3/4 inches in diameter, the burner features a 1/2" FPT gas inlet connection, #56 orifice size, and a 125,000 BTU capacity for use in compatible natural gas equipment. Commonly installed in commercial ranges, stock pot ranges, and heavy-duty cooking appliances, the burner helps provide even heat distribution and reliable cooking performance. A damaged, clogged, or worn burner can lead to uneven flames, reduced heating efficiency, or inconsistent cooking temperatures. Replacing the burner can help restore proper gas distribution, stable burner operation, and consistent heating performance across the cooking surface.

Equipment Compatibility:
Common replacement applications for Royal Range Jet Burner assemblies include commercial ranges, stock pot ranges, and gas-fired cooking equipment. This Jet Burner 1302 is compatible with commercial equipment from leading brands such as Royal Range, Imperial, and Dynamic Cooking Systems, and more, where controlled gas combustion and heat generation are required for proper equipment operation.

Brand Compatibility:
This jet burner replaces multiple part numbers used across compatible equipment models from brands such as Royal Range, Imperial, and Dynamic Cooking Systems. Complete cross-reference details are provided separately for identification and ordering purposes.

Product Specifications:
SKU: 1302
Manufacturer: Royal Range
Product Type: Jet Burner
Burner Style: Duck Jet Burner
Gas Type: Natural Gas
Material: Cast Iron
Burner Diameter: 7-3/4"
Gas Inlet Connection: 1/2" FPT
Number of Duck Jets: 18
Orifice Size: #56
BTU Rating: 125,000 BTU
Application: Commercial Gas Cooking Equipment

Key Features:

• Distributes natural gas through 18 duck jet nozzles
• Provides heat generation for commercial cooking equipment
• Cast iron burner construction for high-temperature applications
• 125,000 BTU capacity for heavy-duty cooking operations
• 1/2" FPT gas inlet connection for compatible installations
• Supports even flame distribution across the burner surface
• Suitable for commercial ranges and stock pot equipment
• Helps restore proper heating performance when replacing a damaged burner

Operational Feedback:

"After replacing the burner, the flame pattern became more even and heating performance returned to normal."

Step1: Turn off the gas supply and unplug the appliance.

Step2: Remove the grate and access the burner area.

Step3: Disconnect the old jet burner from gas line and mounts.

Step4: Carefully remove the old burner assembly.

Step5: Install the new jet burner, aligning it with the gas port.

Step6: Reconnect gas line and secure mounting hardware.

Step7: Restore gas and power, then test flame for proper operation and safety.

• What maintenance is required for the ROYAL RANGE 1302 Jet Burner?

  Clean burner ports regularly to prevent clogging. Inspect gas connections and mounting for leaks or looseness. Check the flame pattern to ensure even combustion. Proper control ensures secure operation, consistent heat, and efficient fuel usage.

• What are common issues with the ROYAL RANGE 1302 Jet Burner?

  • Clogged ports are causing uneven flame distribution.
  • Yellow or irregular flames indicating incomplete combustion.
  • Gas leaks from loose fittings.
  • Burner misalignment affecting heat output.
  • Corrosion or carbon buildup reducing efficiency.
