Southbend 1401339 Combination Gas Valve
Specifications:
- Millivolt Only, Non-Regulated, 3/8" Cct In/Out (One Is
- 90Deg), 1/4" Cct Pilot Out
- Valve Only Was Ap#541199
Description
Dimensions:
- Weight: 3.23 lbs
- Length: 6 in
- Height: 5.5 in
- Width: 5.5 in

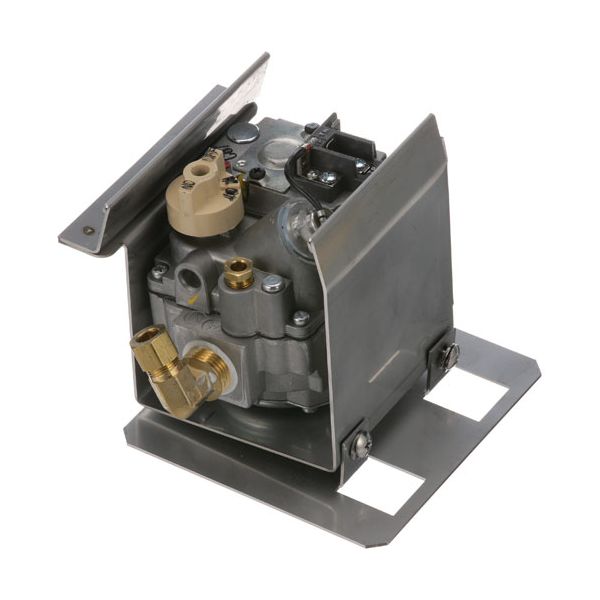

Controls gas flow within compatible Southbend commercial range equipment, the Southbend 1401339 Range Combination Gas Valve is a millivolt-only, non-regulated valve with 3/8" CCT inlet and outlet connections, including one outlet configured at 90°, and a 1/4" CCT pilot outlet for compatible installations. It is used within the range gas system where gas flow control and pilot connection are required. Replacing a worn, damaged, or failed gas valve can help restore proper gas flow control and normal range operation.
Equipment Compatibility:
Designed for use with compatible Southbend equipment where proper gas valve operation and installation are required.
Product Specifications:
SKU: 1401339
Manufacturer: Southbend
Product Type: Combination Gas Valve
Application: Range Equipment
Key Features:
- Combines gas flow control and pilot outlet connection in one valve assembly.
- Supports millivolt-only gas control within the range system.
- Uses 3/8" CCT inlet and outlet connections for the main gas connections.
- Provides a 90° outlet configuration for the specified connection arrangement.
- Includes a dedicated 1/4" CCT pilot outlet for the compatible pilot connection.
The range was having trouble with the gas flow. We replaced the gas valve and the range is working normally again.
Step1: Close the main range gas line to prevent leaks.
Step2: Disassemble the section containing the valve.
Step3: Carefully remove the old valve from the line.
Step4: Install the replacement range valve in the same position.
Step5: Tighten all fittings using proper tools.
Step6: Restore gas supply slowly.
Step7: Check thoroughly for leaks and proper flow.
-
What maintenance is required for the Southbend 1401339 Gas Valve?
Regularly inspect the gas valve for leaks, corrosion, or buildup. Clean connections and ensure proper alignment. Maintenance prevents gas flow issues, ensures safe operation, and assists maintaining consistent range performance.
-
What are common issues with the Southbend 1401339 Gas Valve?
- Gas leaks or weak flow.
- Valve sticking or failing to open/close.
- Irregular flame or burner performance.
- Corrosion or buildup affecting operation.
