APW 14794-36 Thermostat SJ 3/16" x 11-5/8" CAP 36'' 100-450°F

SKU: 14794-36 1-14794-36 Brand:
APW
Availability:
In Stock
(0)
$94.71 Price reduced from $186.65
Save $91.94
Have a Question? +1 (866) 863-0907

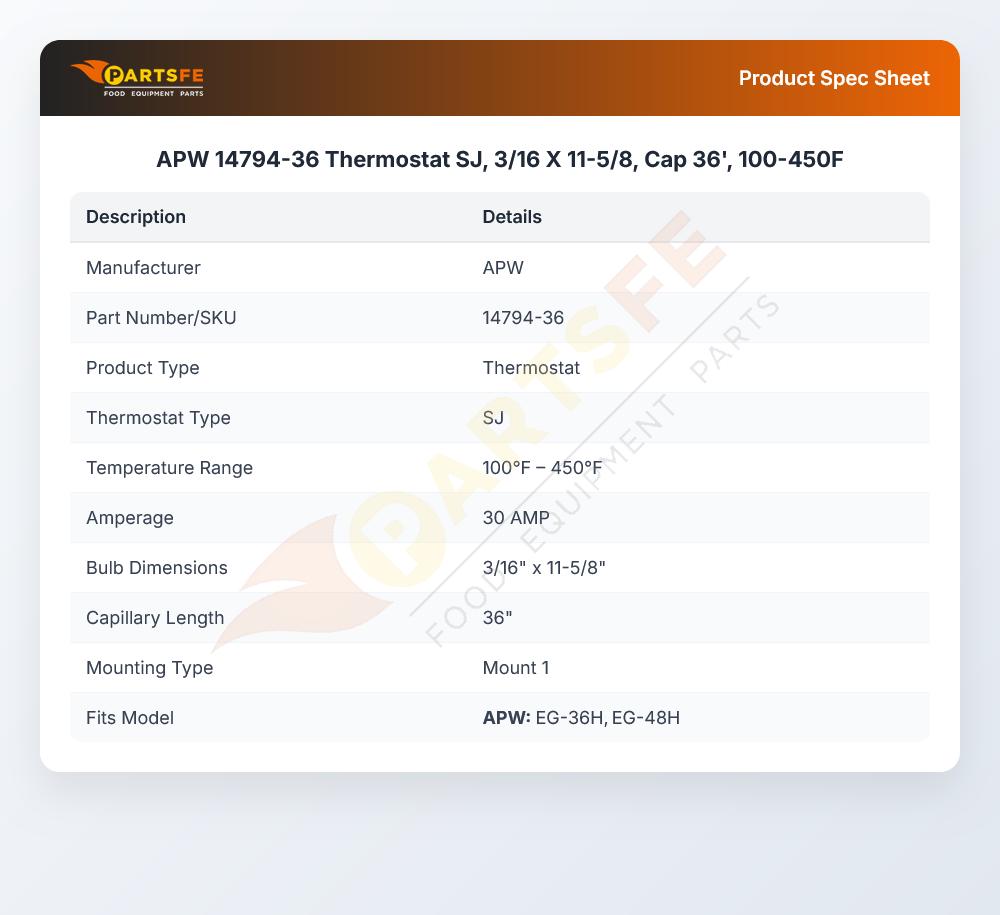

Specifications:

  • Thermostat, [ Type- Sj ] [ Temp 100-450 F ] 30Amp
  • [ Bulb 3/16" X 11-5/8" ] [ Cap 36" ] Mount 1,
  • [Gen Use Dial # 22-1004 Off-450-100 ]
  • Knob For Apw Griddle Grey Pointer # 22-1491
  • Apw Wyott Griddle Model Eg- 24,36, Eg2436, Eg2448,
  • Eg-Xx, Eg-Xxh
  • Wells Dial # 22-1181, Grey & Silver T'Stat
  • Knob "Wells" [ 2-3/8" Dia ] [ Off-450-200] [Mount .187" ]
  • [Flat Down ]
  • Wells Grill G13, G15, G19, G23, G24, G60, G136,
  • G156, G196, G236, G246, G606, Jg236, Jg606.

Description

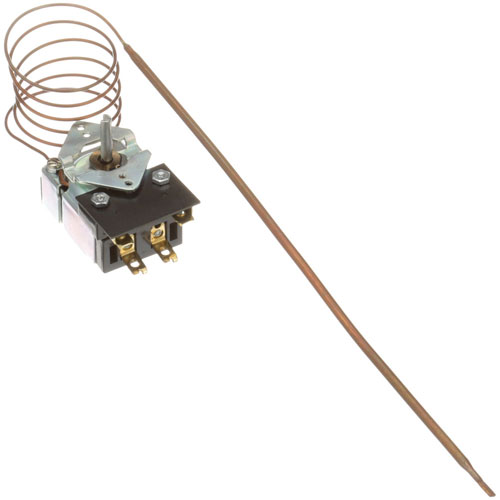

The APW 14794-36 Thermostat SJ 3/16" x 11-5/8" Cap 36' 100-450°F is a thermostat that measures the temperature and switches on the heating component to maintain a preset range. It works between 100 and 450 degrees Fahrenheit and it switches on and off to create the required cooking atmosphere. This is intended to be installed on the commercial kitchen equipment, where the capillary tube and sensing bulb detect the conditions inside the appliance and maintain a constant operation during the cooking or warming process.

Dimensions:

  • Weight: 0.5 lbs
  • Length: 12.38 in
  • Height: 2 in
  • Width: 2.75 in

APW WYOTT:

1479436 AS-1479436

BLOOMFIELD:

2T-30257

METAL MASTERS:

320055

STAR MFG:

2T-30257 2T30257 50257 64969 WS-50257 WS-64969

U-LINE:

5300-14F

Step1: Turn off electrical power at breaker and check circuit is de-energized for safety.

Step2: Mount thermostat body securely on panel using provided hardware in a stable location.

Step3: safely route capillary tube without kinks, avoiding hot surfaces or sharp bends.

Step4: Connect electrical terminals according to wiring diagram, ensuring tight, correct polarity connections.

Step5: Set desired temperature range and restore power, then test operation for proper cycling and safety.

  • What maintenance is required for the APW 14794-36 Thermostat?

    Periodically inspect the thermostat capillary tube and sensing bulb for kinks, damage, or loose mounting. Verify temperature settings and calibration to ensure accurate heat control. Keep electrical connections clean and secure, and disconnect power before performing any inspection or service work.

  • What are the common issues with the APW 14794-36 Thermostat?

    • Temperature control drifting.
    • Heating cycles becoming inconsistent.
    • Bulb sensing inaccurate.
    • Capillary damage occurring.
    • Dial response becoming stiff.
