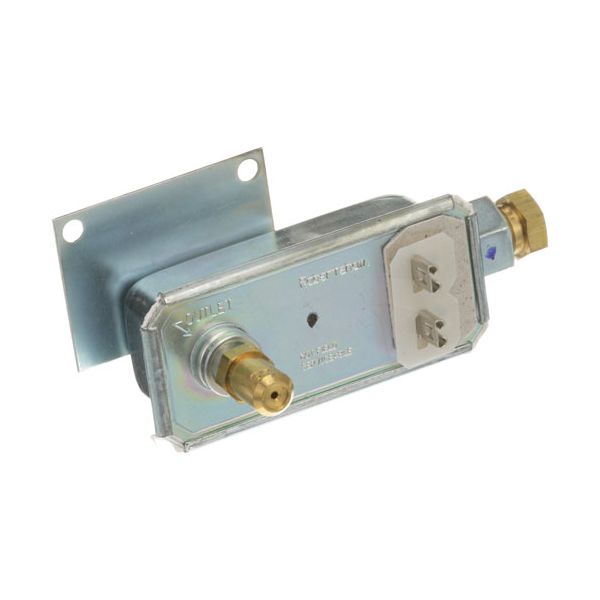

Hobart 15109-N Gas Safety Valve 3/8" Tube 3.03/3.3V
Special Price $168.23 Regular Price $266.90
Out of stock
SKU
15109-N
Manufacturer:
The Hobart 15109-N Gas Safety Valve 3/8" Tube 3.03/3.3V is a low-voltage fuel management part that controls the admission of gas to the burner circuit in compatible heating systems. Mounted within the gas train, the valve uses an electrically powered operator to open the internal passage only when the control circuit allows for unit operation. When power is removed or the flame supervision circuit detects an abnormal condition it returns to its closed position and stops fuel flow. It plays an essential role in coordinating gas delivery and supporting controlled burner sequencing during heating processes.
Dimensions
- Length: 6.125 In
- Width: 3 In
- Height: 3 In
- Weight: 0.6 lbs
Product Notes
- [ Gas Safety Valve ] [ 3/8" Cct ] [ Width 3" ]
- Has Adj Orifice With #49 On Orifice & #57 On Pin,
- [ Old# 4090-287 New # Y-30128-Af1 ]
- 2Ea 1/4" Female Terms., Bracket Mount
- Wolf Used With Electronic Ignition.
