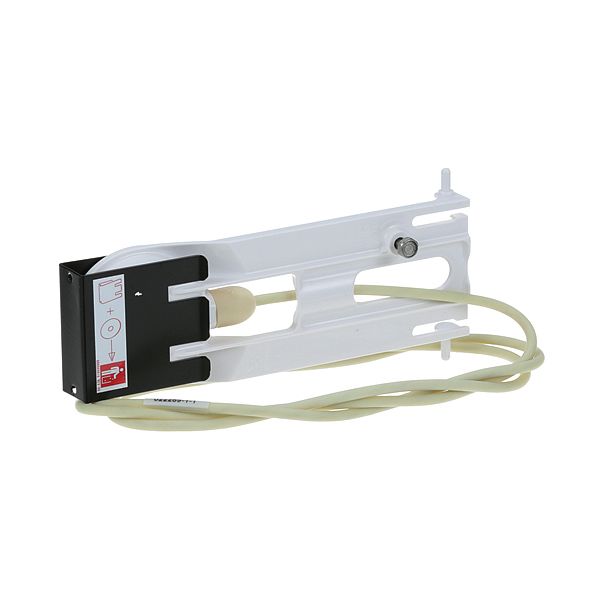

Manitowoc 15209 Ice Machine Ice Thickness Probe W/ Washer

Product Overview:
Designed for ice-formation monitoring, the Manitowoc 15209 Ice Machine Ice Thickness Probe With Washer is an OEM sensing component within compatible commercial ice machines. Its position in the ice-making area allows the probe to detect the developing ice condition and provide the control system with the corresponding sensing input.

Ice Sensing:
As ice develops on the evaporator, the probe responds when the formation reaches its sensing point. This detection provides the machine's control system with information about the progression of the freezing cycle. The sensing function allows the equipment to recognize the applicable ice-formation condition without directly controlling the refrigeration process.

Cycle Control:
During the freezing sequence, the ice-thickness signal contributes to determining when the machine has reached the required stage for cycle progression. The control system uses the probe's detected condition as part of its operating sequence, making reliable sensing important to the timing and coordination of ice production.

Replacement Guidelines:
Replacement may be necessary when the probe provides inconsistent ice detection, fails to respond during the freezing cycle, or shows physical deterioration. Corrosion, mineral buildup, or visible damage can interfere with the probe's sensing function. Before purchasing a replacement, verify the existing part number, probe configuration, included washer, and complete equipment model against applicable parts documentation. The Manitowoc 15209 Ice Machine Ice Thickness Probe W/ Washer should match the required sensing arrangement for the specific equipment.

Common Failure Symptoms:

• Inconsistent ice thickness
• Incorrect or irregular cycle timing
• Failure to detect ice formation
• Intermittent sensing
• Ice production interruptions
• Visible probe damage or mineral buildup

Equipment Compatibility:
For compatible Manitowoc commercial ice machine applications, the Manitowoc 15209 Ice Thickness Probe is an OEM component that provides the ice-formation sensing function required by the equipment. Verify the complete equipment model number and existing part number against the applicable parts documentation before purchasing.

Technical Specifications:
Brand: Manitowoc
Part Number / SKU: 15209
Product Type: Ice Thickness Probe
Equipment Type: Ice Machine
Included Component: Washer

Step1: Turn off and unplug the ice machine to ensure safety.

Step2: Remove the existing ice thickness probe by disconnecting the wiring and mounting clips.

Step3: Insert the probe in the correct position.

Step4: Secure the probe with mounting clips or screws.

Step5: Reconnect wiring carefully, avoiding bent pins.

Step6: Plug in the ice machine and test ice thickness sensing functionality.

• What maintenance is required for the Manitowoc 15209 Ice Thickness Probe?

  Inspect the ice machine probe for scaling or residue buildup. Ensure the wiring and washer are properly seated. Test probe readings to maintain efficient ice production and accurate thickness measurement.

• What are the common issues with the Manitowoc 15209 Ice Thickness Probe?

  • Inaccurate ice thickness detection.
  • Scaling or residue interfering with probe performance.
  • Loose wiring causing intermittent readings.
  • Corrosion affecting conductivity.
  • Misalignment leading to incorrect ice cycle termination.
