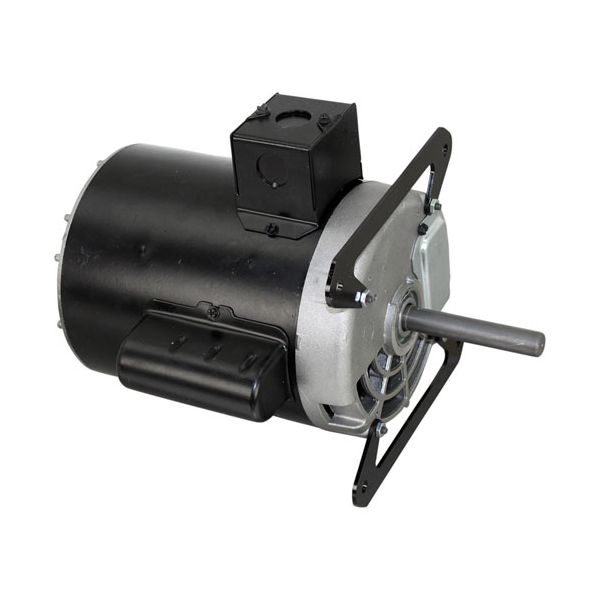

Garland 1686711 0.75/0.21HP 2-Speed Blower Motor 1725/1140 RPM 115V/1PH

Rating:
5 5 25
25  Reviews Add Your Review
Special Price $200.45 Regular Price $308.86
In stock
SKU
1686711
Add to Wish List
Electrical & Hardware, Fans & Blower Motors,
Manufacturer:

The Garland 1686711 Oven 2-Speed Blower Motor is a high-performance motor intended for use in kitchen equipment. This motor runs at two speeds; 1725 and 1140 RPM to ensure the fan is always at the right speed to provide the right airflow for even cooking. It has a power rating of 0.75 HP and a voltage of 115V and it guarantees efficiency when operating even with minimal power it is designed to be very strong and long-lasting in such conditions and is an important part of equipment for commercial use.

Dimensions

  • Length: 15.25 In
  • Width: 10.5 In
  • Height: 10.5 In
  • Weight: 25 lbs
https://partsfe.com/media/catalog/product/g/a/garland-gl1686711-0-75-0-21hp-2-speed-blower-motor-1725-1140-rpm-115v-1ph-75658-2.jpg

Product Notes

  • Blower Motor, 2 Speed.
  • [ 115V, ] [ .75/.21 Hp, ] [1Ph ] [1725/1140 RPM ]
  • [9.8/4.2 Amp ] [Cw Rotation ] [ 3-3/4" X 5/8" Shaft ]
  • [ Y56Y Frame ] [ 6-3/16" X 6-3/16" Mtg. Brkt. ]
  • Qty 4 Outside 5/16" Holes, On Each Bracket 2 Holes Are
  • 6-3/16" On Centers And From Bracket To Bracket Also 6-3/16"
  • Centers. Inside Bracket Mount Studs Are 3/16" Studs And Are
  • Spaced On 4" Centers Bracket To Bracket And On Each Bracket
  • They Are Spaced 4.097"
  • Garland Blower Wheel # 26-1464
  • Us Range Blower Wheel # 26-1464
  • Garland Oven Mcogs, Mcogd, Icog, Ecog, Icog,.
  • Tim Ortons Spritzer,
  • Us Range Oven Models Sge100, Sgm100, P1-G-10D, Cg100, Sdg,
  • Sumg-100
Provides the rotational power required to operate the blower assembly in compatible commercial cooking equipment. The Garland 1686711 Blower Motor 0.75/0.21HP 2-Speed 1725/1140 RPM 115V 1PH 60Hz serves as the mechanical drive component for the associated airflow system, operating at either of its specified speeds according to the equipment's control requirements. Its 115V single-phase electrical configuration and two-speed motor design provide the defined electrical input and mechanical output required for the connected blower assembly.

Blower Drive Regulation:
Regulates the rotational movement used to drive the connected blower assembly within the equipment's airflow system. The blower motor responds to the equipment's operating requirements by providing the rotational force needed to maintain the selected air movement. This controlled drive function allows the blower assembly to support airflow through its designated circulation path.

Heating Air Distribution:
The motor-driven blower moves air through the equipment's heating section and cooking chamber. As the blower rotates, it directs air through the designated circulation pathway, supporting the distribution of heated air according to the equipment's operating configuration and selected blower speed.

Replacement Guidelines:
Replace the Garland 1686711 2-Speed Blower Motor when wear, physical damage, deterioration, or electrical failure affects its intended air-moving function. Inspect the motor and related electrical connections and blower components for conditions that could affect airflow or motor operation. Replace the component when it can no longer maintain its intended function within the equipment's air circulation system.

Common Failure Symptoms:

  • Weak or reduced airflow
  • Motor fails to start
  • Intermittent motor operation
  • Grinding, humming, or unusual operating noises
  • Excessive vibration during operation
  • Motor overheating
  • Inconsistent blower speed
  • Uneven air circulation

Equipment Compatibility:
The Garland 1686711 Blower Motor 0.75/0.21HP 2-Speed 1725/1140 RPM 115V 1PH 60Hz is for Garland commercial cooking equipment that requires this motor configuration. Verify the equipment model number, part number, horsepower, voltage, phase, speed configuration, and RPM ratings before purchase to confirm the correct application.

Technical Specifications:
Brand: Garland
Part Number: 1686711
Product Name: Blower Motor
Horsepower: 0.75/0.21 HP
Speed: 2-Speed
Motor Speed: 1725/1140 RPM
Voltage: 115V
Phase: 1PH
Frequency: 60Hz

Replaces Parts
Reviews 25
Write Your Own Review
You're reviewing:Garland 1686711 0.75/0.21HP 2-Speed Blower Motor 1725/1140 RPM 115V/1PH
Your Rating
Related Posts
  1. How to Clean a Turbochef Oven
FAQS
Customer Questions
Can I install the Garland motor myself, or do I need a professional technician?

Installation can be performed by a qualified technician or by homeowners with basic DIY skills. The motor's design and installation process are user-friendly, and it comes with clear instructions to guide you through the process.

How to determine if my old blower motor needs replacement?

If you notice decreased blower efficiency, unusual noises, or if your range's performance is not up to par, it might be time to consider replacing the motor.

Can I install the Garland motor myself, or do I need a professional technician?

Installation can be performed by a qualified technician or by homeowners with basic DIY skills. The motor's design and installation process are user-friendly, and it comes with clear instructions to guide you through the process.

How to determine if my old blower motor needs replacement?

If you notice decreased blower efficiency, unusual noises, or if your range's performance is not up to par, it might be time to consider replacing the motor.

What maintenance is required for the Garland 1686711 Blower Motor?

Periodically inspect the motor for dust or debris buildup around the fan and housing. Verify wiring connections are secure and speed switch functions correctly. Lubricate bearings if applicable and observe for unusual vibrations during operation.

What are common issues with the Garland 1686711 Blower Motor?

  • Motor runs at only one speed.
  • Excessive vibration during operation.
  • Motor fails to start at low speed.
  • Unusual buzzing sounds.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power to the unit to avoid electrical hazards.

Step2: Open the motor compartment and locate the blower assembly.

Step3: Label and disconnect wires from the existing motor.

Step4: Loosen mounting bolts and remove the old motor.

Step5: Install the new motor, align properly, and secure bolts.

Step6: Reconnect wiring, close the panel, restore power, and verify speeds.
