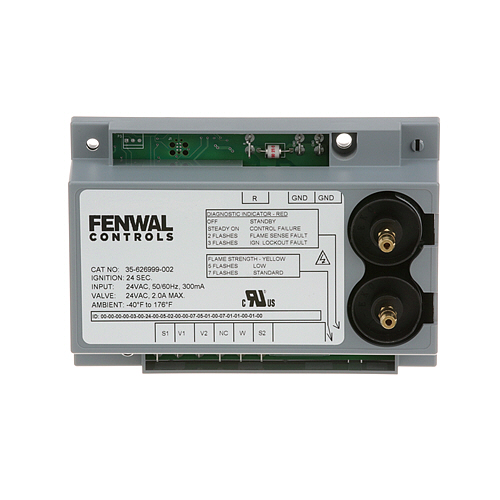

Duke 175509 Upper Burner Ignition Module

SKU: 175509 1-175509 Brand:
Duke
Availability:
In Stock
(1)
$190.78 Price reduced from $376.00
Save $185.22
Have a Question? +1 (866) 863-0907

Description

The Duke 175509 Upper Burner Ignition Module is in charge of the burning sequence, and it is activated by an electrical signal and produces a timed spark to ignite the upper burner. The module is normally fitted in the upper assembly of the equipment in the control compartment. It is used in commercial cooking systems, and it is connected to wiring harnesses, switches, and circuits to control the start-up conditions. The assembly maintains burner lighting by ensuring, that cycles are controlled when going through repeated heating processes.

Dimensions:

  • Weight: 1 lbs
  • Length: 1 in
  • Height: 1 in
  • Width: 1 in
Manufacturer Name: Duke
Product Number: 175509
OEM Part Number: 175509
Product Description: Ignition Module, Upper Burner
Similar Models:175869 - Duke, 175869K - Duke, 177830K - Duke, 620413 - Franke
Dimensions:
Length:1in/2.54cm
Width:1in/2.54cm
Height:1in/2.54cm
Weight:1lbs/453.59g

Choose the best Commercial kitchen & Restaurant equipment parts and supplies from PartsFe!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at 866-863-0907 or contact@partsfe.com

Step1: Turn off power and gas supply let unit cool completely.

Step2: Remove access panel and disconnect old ignition module wiring carefully, noting positions.

Step3: Mount new module in same position and secure with screws.

Step4: Reconnect wiring terminals as per labels or original configuration.

Step5: Restore power and gas, then test ignition for proper spark and burner operation.

Step6: Ensure no gas leaks and reassemble panel safely.

  • What maintenance is required for the Duke 175509 Burner Ignition Module?

    Inspect the ignition module regularly for loose wiring connections, corrosion, or heat damage that can affect burner ignition accuracy. Ensure mounting is secure to prevent vibration-related failures during operation. Keep the surrounding area clean and dry to avoid moisture-related electrical faults. Always disconnect power before servicing to prevent shock or accidental ignition issues.

  • What are common issues with the Duke 175509 Burner Ignition Module?

    • Failure to ignite burner.
    • Intermittent ignition performance.
    • Loose or damaged wiring connections.
    • Weak spark output.
    • Electrical faults affecting operation.

Customer Reviews

5 Based on 1 reviews
5 ★
1
4 ★
0
3 ★
0
2 ★
0
1 ★
0
1 review
  • Fast Spark
    John —

    Sparks consistently ignite the burner without hesitation.
