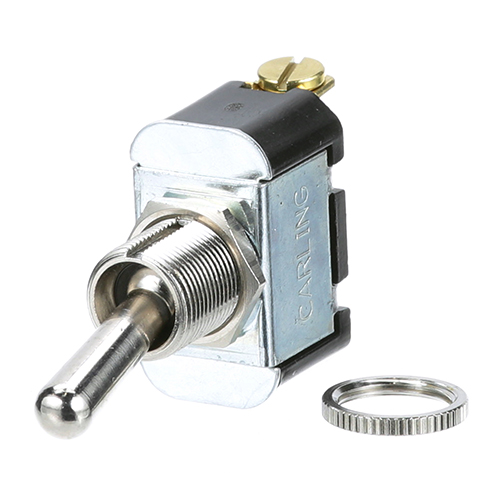

Jade Range 2024600000 Convection Oven Toggle Switch SPST On/Off 20A/125V 10A/277V 1/2" Hole

SKU: 2024600000 1-2024600000 Brand:
Jade Range
Availability:
In Stock
(0)
$60.76 Price reduced from $100.92
Save $40.16
Have a Question? +1 (866) 863-0907

Specifications:

  • [ Toggle Switch] [ Fits Hole 1/2" ] [ On/Off ] [ Spst ]
  • [ Terminals 2 (Screws) ] [ Volt/Amp 20A/125V,10A/277V,
  • 12A/250V ] [ Color -Black/Slvr]
  • Alto-Shaam Oven 100-Hsl, 100-Hsl/Cbd, 200-Swl, 300-Hft, Sb.
  • American Permanent Ware Toaster M78
  • Carter Hoffman Warmer Fh80, Cc, Fs-Dmch Series: Bc
  • Ember-Glo Steamer Series: Ar, Fs.
  • Jade Oven Jslb, Jsr
  • Market Forge Oven 2500,2700, M24Sc, M36Sc, Etco
  • Merco Warmer. Pitco Fryer.
  • Pitco Fryer
  • 12,14,14R,18,7,Bf-12,Bf-14,Bf-14R,Bf-18,Bf-24,
  • Bf-34,Bf-7,P-12,P14,P-14,P-14R,P18,P-18,P24,P-24,
  • P34,P-34,P-7,Pm14,Pr14
  • Prince Castle Filter Machines: 99,102, 107, 108, 499.

Description

The Jade Range 2024600000 Convection Oven Toggle Switch SPST On/Off is a 1/2" hole system that can be used to switch an electrical circuit between on and off by sliding between on and off positions to place or break contact. The actuator of the switch completes or breaks the circuit when the switch is made or broken to control the flow of power to the connected component as per the design. It is fitted on the control panel of compatible equipment, fitted in the specified opening, with the actuator being available on the outside.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 2 in
  • Height: 0.63 in
  • Width: 1.13 in

APW WYOTT:

65330

CARTER HOFFMAN:

18602-0030

CRES COR:

808-11

EMBER GLO:

842321 842343

LINCOLN:

000716SP

MARKET FORGE:

10-5022

MERCO:

000716 000716SP 716 716SP

MIDDLEBY MARSHALL:

A26215

PRINCE CASTLE:

100-9

ROUNDUP:

4010101 4010101A

Step1: Turn off power at breaker and verify no voltage with a multimeter tester before beginning work.

Step2: Remove existing switch and carefully label or note wiring connections for correct reinstallation.

Step3: Connect line and load wires to SPST terminals securely, ensuring tight, insulated connections.

Step4: Mount switch into 1/2" panel hole and tighten mounting hardware firmly in place.

Step5: Restore power and test operation, confirming proper on/off functionality.

Step6: Ensure insulation and safety precautions are followed to prevent electrical shock.

  • What maintenance is required for the Jade Range 2024600000 Toggle Switch?

    Inspect the switch periodically for loose connections and tighten terminals to ensure reliable operation. Keep contacts clean and free from dust or grease buildup. Avoid moisture exposure and ensure electrical load stays within rated limits for safety.

  • What are common issues with the Jade Range 2024600000 Toggle Switch?

    • Loose terminal connections causing intermittent power loss.
    • Contact wear leading to inconsistent switching response.
    • Overheating under excessive load or voltage mismatch.
    • Mechanical toggle stiffness or failure to latch properly.
