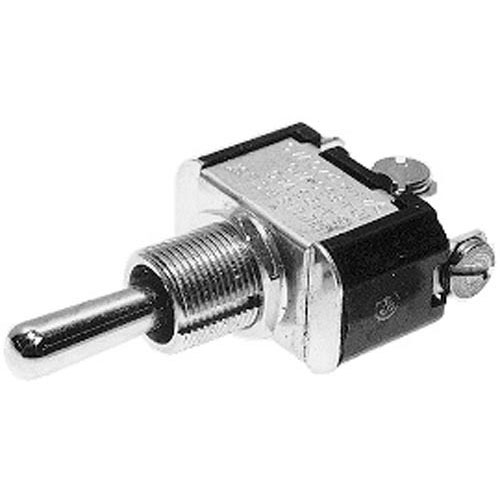

Jade Range 2035300000 Toggle Switch SPDT ON/OFF/ON 20A/125V 10A/277V

SKU: 2035300000 1-2035300000 Brand:
Jade Range
Availability:
In Stock
(0)
$7.62
Have a Question? +1 (866) 863-0907

Specifications:

  • [ Toggle Switch ] [ Fits Hole 1/2" ] [ On/Off/On ]
  • [ Spdt(Ctr-Off) ] [ Terminals 3 (Screws) ]
  • [ Amp/Volt 20A/125V,10A/277V ] [ Color Silver]
  • For Rubber Toggle Boot Use # 28-1078
  • Anets
  • Fryer All Power Filters, (Cqf Series).
  • Jade Oven Series: Jslb, Jsr, Jtrh.
  • Pitco Fryer
  • 12,14,14Bif,14R,14Ufm,18,18Bif,18Ufm,7,Bf-12,
  • Bf-14,Bf-14R,Bf -18,Bf-24,Bf-34,Bf-7,P-12,
  • P14,P-14,P-14R,P18,P-18,P24,P-24,P
  • 34,P-34,P-7,Pm14,Pr14

Description

The Jade Range 2035300000 Toggle Switch ON/OFF/ON 20A/125V 10A/277V is a single-pole, double-throw switch that is used to direct electrical flow between circuits. It moves between three positions with smooth movement to operate related equipment in a consistent manner. The component is normally mounted on commercial cooking equipment, control panels, or other equipment that needs a multi-position switch. Its size is enough to fit in the mounts to make sure that it works correctly in the electrical system of the equipment.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 2.13 in
  • Height: 0.63 in
  • Width: 1.13 in

ANETS:

P9100-05

JADE RANGE:

20-353 200-353-000 200353000

MAGIKITCH'N:

P5047163

PITCO:

P5047163 P9100-05

Step1: Disconnect all electrical power and check unit is fully de-energized.

Step2: Remove control panel to access existing toggle switch wiring.

Step3: Label and disconnect wires from old switch terminals.

Step4: Remove mounting nut and extract faulty switch from panel.

Step5: Install new switch, secure tightly, and reconnect wires to matching terminals.

Step6: Restore power and test ON/OFF/ON operations for correct and safe switching.

  • What maintenance is required for the Jade Range 2035300000 Toggle Switch?

    Regularly inspect the toggle switch for loose connections or corrosion and tighten terminals as needed. Keep it free from dust and grease to ensure accurate operation. Proper maintenance prevents electrical faults and enhances safety during high-load usage.

  • What are common issues with the Jade Range 2035300000 Toggle Switch?

    • Intermittent switching or failure to change contact state due to worn internal contacts.
    • Loose terminals causing unstable power connection or intermittent operation.
    • Contact arcing or overheating under high current load leading to malfunction.
