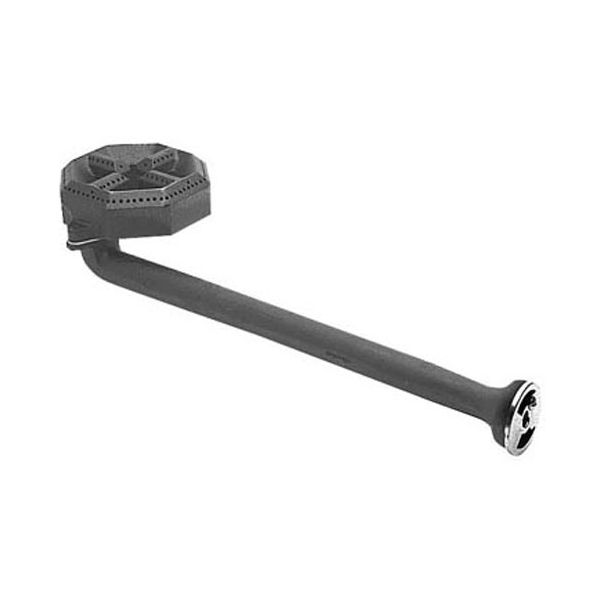

main product photo

Garland 222003 Rear Burner Assembly 20-1/2 "

Be the first to review this product
Special Price $136.11 Regular Price $209.72
In stock
SKU
222003
Add to Wish List
Griddle & Grill Parts, Griddle & Grill Grates,
Manufacturer:
The Garland 222003 Rear Burner Assembly 20-1/2" provides the heating capability for cooking in the appliance by directing and igniting the gas along the burner ports. It works by taking the supply line gas and it generates a regulated flame along its length. The assembly is attached to the back part of the cooking surface of the appliance, which is linked to the gas supply system and ignition. which works in collaboration with other burners, controls and safety systems to ensure the constant distribution of heat and the appropriate functioning during cooking.

Dimensions

  • Length: 20.5 In
  • Width: 5.5 In
  • Height: 3.5 In
  • Weight: 7.5 lbs
https://partsfe.com/media/catalog/product/g/a/garland-222003-rear-burner-assembly-20-1-2-68792-2.jpg

Product Notes

  • Rear Burner Ssembly
  • [ 20-1/2" ] Cast Iron, Burner Head, Gasket, Venturi,
  • And Air Shutter.
  • Burner Head Only # 24-1043, 8 Sides~
  • 1 Slot, 2" Ctr Mount.
  • Air Shutter, 2 Windows, Single, .468" Hole, # 26-1569
  • Gaket Only # 32-1024
  • Rear Venturi & Air Shutter # 24-1132
  • Garland / U.S. Range
GARLAND:
GLOBAL REFRIGERATION:
Reviews
Write Your Own Review
You're reviewing:Garland 222003 Rear Burner Assembly 20-1/2 "
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Garland 222003 Rear Burner Assembly?

Clean the burner assembly regularly to remove grease, debris, and blockages from burner ports. Inspect for corrosion or damage and ensure all connections are secure. Proper maintenance assists in maintaining consistent flame performance and stable gas flow operation.

What are the common issues with the Garland 222003 Rear Burner Assembly?

  • Uneven or weak flame output.
  • Clogged burner ports are restricting gas flow.
  • Ignition failure or delayed lighting.
  • Gas flow inconsistencies during operation.
  • Corrosion or rust on burner components.
  • Overheating due to improper combustion.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Shut off gas supply before starting.

Step2: Remove the old rear burner assembly.

Step3: Install the new assembly in the same position.

Step4: Reconnect all gas lines and secure mounting hardware.

Step5: Turn on gas and test burner ignition.

Step6: Keep area ventilated and avoid sparks.
