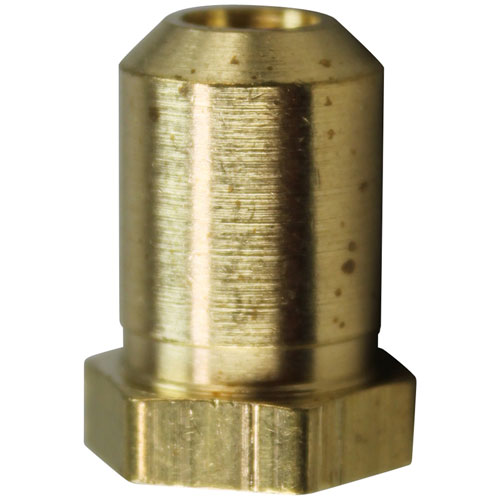

Garland 223242-43 Hood Orifice #43 3/8"-27 X 1/2" High

SKU: 223242-43 1-223242-43 Brand:
Garland
Availability:
In Stock
(0)
$3.82
Have a Question? +1 (866) 863-0907

Specifications:

  • Brass Hood Orifice,
  • 3/8"-27 X 1/2" High X #43
  • Note: Orifice May Have #72 Stamped But Has Been Drilled To
  • The Proper Size
  • Jade Jcbh
  • Grill Jggt, Jggtb, Jgm, Jgt, Jgtb

Description

The Garland 223242-43 Hood Orifice #43 3/8"-27 x 1/2" High measures the flow of natural gas to a burner by providing an aperture of just the right size that restricts the flow of fuel prior to entering the combustion chamber. The gas flows through the calibrated hole in the orifice that regulates the correct combustion pressure. It is fitted in the gas train at the burner assembly of compatible cooking equipment where the 3/8"-27 inlet and 1/2"H in the system.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.75 in
  • Height: 0.5 in
  • Width: 0.5 in

HOBART:

00-418051-00043 00-719951-00043 418051-00043 418051-43 719951-00043 719951-43

IMPERIAL:

1700-43 2062-1

JADE RANGE:

46-207 460-207-000 460207000 4620700000

SOUTHBEND:

1008743

VULCAN HART:

00-418051-00043 00-719951-00043 418051-00043 418051-43 719951-00043 719951-43

Step1: Turn off the gas supply completely before beginning.

Step2: Remove the existing orifice from the burner assembly carefully.

Step3: Clean the orifice port and surrounding area to remove debris.

Step4: Install the new orifice in the same orientation, ensuring it seats properly.

Step5: Reconnect any gas lines and secure fittings.

Step6: Restore gas supply slowly and test burner flame for proper operation.

Step7: Avoid open flames and ensure proper ventilation during installation.

  • What maintenance is required for the Garland 223242-43 Orifice?

    Clean the orifice carefully to prevent clogging from grease or debris buildup. Inspect for blockages or wear that may affect gas flow. Proper maintenance ensures accurate gas delivery and consistent burner performance.

  • What are the common issues with the Garland 223242-43 Orifice?

    • Clogged orifice restricting gas flow.
    • Inconsistent flame output.
    • Wear enlarging the orifice opening.
    • Improper gas pressure regulation.
    • Debris buildup is affecting performance.
