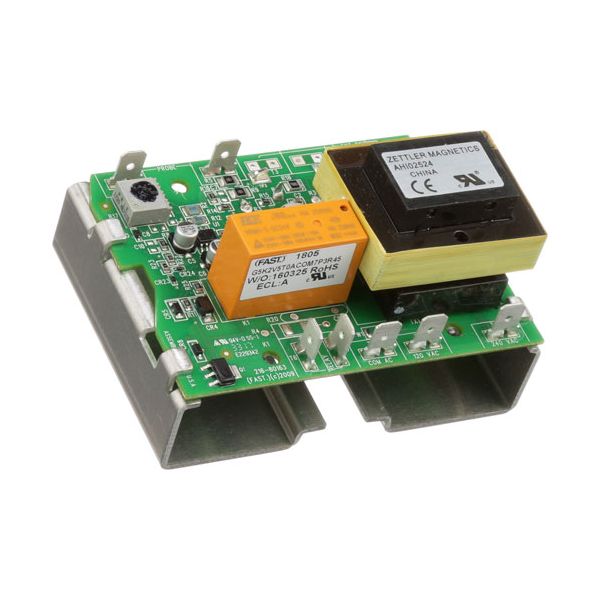

Processes temperature-related signals within the equipment's electronic control system to coordinate heating operation. The Blodgett 24651 Temperature Control Board receives input from connected sensing and control components, interprets operating conditions, and sends electronic signals to regulate the heating cycle. By coordinating temperature information with connected control functions, the board helps the equipment respond to changing thermal conditions and maintain the selected operating parameters. Its electronic circuitry serves as an interface between temperature sensing, control logic, and heating functions during normal operation.
Electronic Temperature Control:
Receives signals from temperature-sensing components and processes the information used to control the heating cycle. Based on the operating conditions and selected settings, the board communicates with associated control components to initiate, adjust, or stop heating functions. This electronic coordination helps maintain consistent temperature regulation throughout the equipment's operating cycle.
Control Circuit Communication:
Provides an electronic communication interface between temperature sensors, heating components, and related control devices. Proper communication allows temperature information to move through the control system and enables connected components to respond according to the equipment's operating sequence.
Replacement Guidelines:
Replacement of the Blodgett 24651 Temperature Control Board if it is damaged, burned, unresponsive, or no longer provides proper temperature control. Verify part number 24651 before replacement to ensure you select the correct temperature control board. Replace the control board if deterioration affects temperature regulation, control response, electrical connections, or normal equipment operation.
Common Failure Symptoms:
- Incorrect or inconsistent temperature response.
- Irregular heating cycles.
- Delayed heating adjustments.
- Equipment not responding correctly to temperature settings.
- Intermittent electronic control operation.
- Failure of related temperature-control functions.
Equipment Compatibility:
The Blodgett 24651 Temperature Control Board is intended for equipment applications requiring this specific control-board configuration. Verify the equipment model, manufacturer part number, and control-system specifications before purchase.
Technical Specifications:
Brand: Blodgett
Part Number: 24651
Product Name: Temperature Control Board
