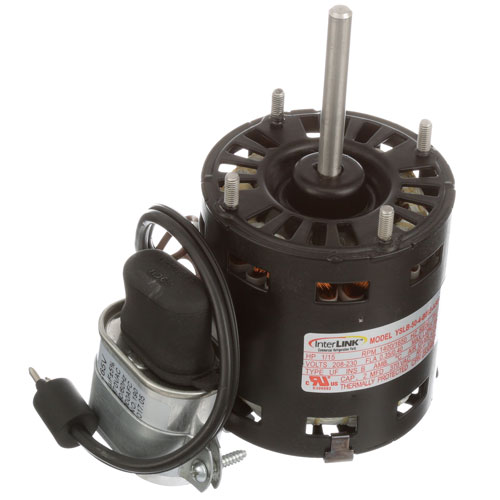

Bohn 25309801S Refrigerator Evaporator Fan Motor 208V CWSE

Step1: Disconnect power and apply lockout tagout, verify evaporator area is fully defrosted and safe.

Step2: Remove evaporator panel and disconnect old fan motor wiring harness carefully.

Step3: Unbolt motor assembly from mounting bracket and retain hardware.

Step4: Install new motor, secure with bolts, and reconnect wiring per diagram.

Step5: Ensure proper rotation alignment, replace cover, restore power, test airflow.

• How to Replace Evaporator Fan Motor in Ice Machine?



  The Evaporator fan motor blows the air all over the evaporator coils and also through the refrigerator for cooling purposes. And it removes the heat in the circulating air. Commercial refrigeration applications use evaporator fan motors. Industrial refrigerator fan motors typically have one speed and are fractional horsepower in size and they move air across the evaporator coil.

  Where is the evaporator fan motor in the freezer or refrigerator?

  The evaporator fan motor is at the back of the refrigerator or freezer, where a panel appears in the front. You need to remove the panel to check out the evaporator fan motor. To get through the panel, you need to remove all the shelves or racks that are placed inside the fridge.

  Now remove the shield and keep it aside from the freezer, in a safe place. You can find the Evaporator Fan right in front of you. Now, push the locking tabs and remove them slowly. Pull out the fan blade from the motor shaft. Now lift the 2 locking tabs on the fan motor, rotate the motor retainer in the clockwise direction, and remove it. Lift the motor from the mounting bracket. Now place the new motor in the same place, and put back the fan on top of it.

  Signs of bad fan motor:

  • The refrigerator is on, but the fan won't turn on.
  • After turning off the refrigerator, the fan continues to run.
  • The fan is turned on but spinning extremely slowly.
  • The fan only seldom runs.
  • When the fan is on, the condenser unit makes a rattling or buzzing sound.

  How do you test a refrigerator evaporator fan motor?

  To test the evaporator fan motor, you need to remove the Evaporator fan motor from the refrigerator and place it aside. To remove it follow the above steps that are mentioned in this blog. There will be two wires connected to the motor. You need to check those two wires.

  You need an OHM meter to perform this test. Put your needle on the OHM symbol. There are two tongs given to the meter, placed on the wires. If you receive the result as 97 ohms, then it is working and in a good condition. You can recheck it to confirm the correct results. If the readings are less than 97, it is not working properly and needs a replacement.

  If the evaporator fan malfunctions or the motor fails, the refrigerator won't chill effectively. The cool breeze is dispersed by the air, which serves as the primary source of cooling. You must replace the fan motor if it is broken or not operating properly.

  Fan motor replacement steps:

  • To replace it, unplug the power cord from the wall outlet so that there would be no electricity passage while working. Though switch

  • What maintenance is required for the Bohn 25309801S Evaporator Fan Motor?

    Keep the refrigerator motor and fan blades clean to prevent dust buildup that can strain the motor. Inspect wiring connections and mounting brackets for tightness and wear. Ensure bearings are properly lubricated if applicable and check for smooth, quiet operation during running cycles.

  • What are common issues with the Bohn 25309801S Evaporator Fan Motor?

    • Refrigerator motor failure or complete non-start condition.
    • Noisy operation from worn bearings or imbalance.
    • Reduced airflow due to weak rotation.
    • Electrical issues such as faulty wiring or capacitor failure.
    • Overheating during extended operation.
    • Intermittent stopping or inconsistent speed performance.
