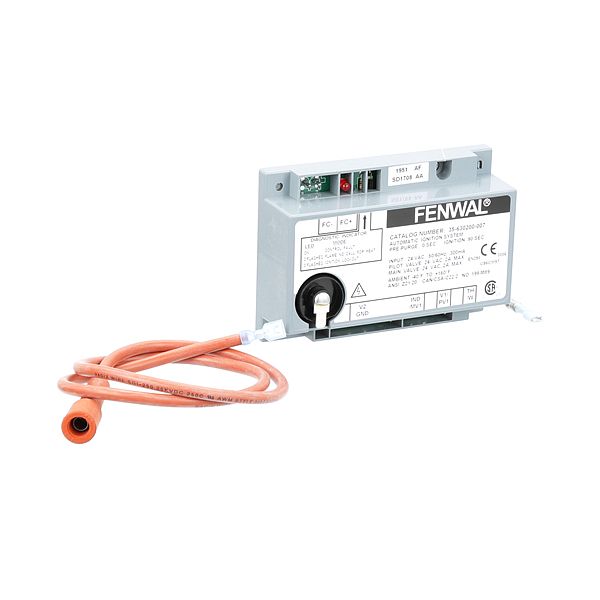

Middleby Marshall 27161-0005 Oven Ignition Module W/ 1/4" Spark Tab

Be the first to review this product
Special Price $273.06 Regular Price $535.00
In stock
SKU
27161-0005
Add to Wish List
Oven Parts, Ignitors,
Manufacturer:
The Middleby Marshall 27161-0005 Oven Ignition Module W/ 1/4" Spark Tab controls the normal combustion sequence in compatible commercial appliance. It transfer electrical power through the spark tab to create consistent idling during startup and heating cycle. This component is commonly set up inside the oven burning control section. where it connects with the burner assembly and electrical wiring. Designed for use in commercial cooking equipment the module ensures ignition operation during regular appliance operations while maintaining communication between the normal rotary and heating components.

Dimensions

  • Length: 4 In
  • Width: 5.25 In
  • Height: 2.75 In
  • Weight: 0.74 lbs
https://partsfe.com/media/catalog/product/m/i/middleby-marshall-27161-0005-oven-ignition-module-w-1-4-spark-tab-39435-2.jpg

Product Notes

  • Fenwal Spark Box, #35-630500-007
  • Prepurge: 0 Sec., Ignition: 90 Sec.,
  • 24Vac, Comes With 34" Wire ,
  • 1/4" M Pushon X Straight Spark Plug Boot.
  • Includes Ignition Wire L325, We-109, # 38-1375 And
  • Wire Adaptor W-111, # 38-1536
  • Replaces Older Honeywell Control.
  • For Pilot H1205, M-238, # 51-1335
  • Middleby Marshall Oven Model Js250,Ps200-R68,
  • Ps220Fs-R68, Ps224-R68, Ps310, Ps360, Ps570

The gas cooking appliance ignition module is used to provide controlled spark production and ignition timing for burners during startup. Operating on a 24 VAC power supply, it delivers controlled ignition sparks through a 1/4" spark tab to ignite the burner during each heating cycle. The ignition timing process includes a 0-second pre-purge and a 90-second ignition cycle, helping support proper startup control in compatible cooking equipment. It is mainly used in fryers and ovens in commercial kitchens that require electronic ignition controls. This module is commonly installed in high-use kitchen equipment where reliable burner ignition is necessary during cooking operations. If the ignition module fails to produce sparks, replacing it can help restore normal appliance heating operation.

Equipment Compatibility:
Typical applications for Middleby Marshall ignition modules include commercial fryer and oven systems used in restaurants, fast food kitchens, and foodservice cooking areas where controlled burner ignition is required for safe operation. This Oven Ignition Module 27161-0005 is compatible with commercial equipment from leading brands such as Pitco, MagiKitch’n, and Middleby Marshall, and more, where electronic ignition and burner start control are required for proper operation.
Brand Compatibility
Replaces multiple part numbers across various commercial fryer and oven equipment brands, including Pitco, Magikitch’n, Middleby Marshall, and other manufacturers. Refer to the “Replaces Parts” section for complete cross-reference details.

Product Specifications:

Manufacturer: Middleby Marshall
SKU: 27161-0005
Product Type: Oven Ignition Module
Voltage: 24 VAC
Ignition Time: 90 seconds
Pre-Purge Time: 0 seconds
Connection Type: 1/4" spark tab
Application: Commercial gas oven and fryer ignition control

Key Features:

  • Manages ignition sequence in commercial gas cooking equipment
  • Produces spark output through a 1/4" spark tab connection
  • Operates on 24 VAC power for standard control system compatibility
  • Pre-set timing supports controlled burner start-up cycle
  • Used in fryer and oven ignition control applications
  • “After replacing the ignition module, the burners started lighting properly again, and the ignition cycle became steady during normal operation.”
Replaces Parts
MAGIKITCH'N:
PITCO:
Reviews
Write Your Own Review
You're reviewing:Middleby Marshall 27161-0005 Oven Ignition Module W/ 1/4" Spark Tab
Your Rating
FAQS
Customer Questions
No Questions
Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off power and gas supply to the oven and allow it to cool completely.

Step2: Remove the control panel to access the existing ignition module.

Step3: Label and disconnect all wiring, including the spark tab connection.

Step4: Unscrew and remove the old module from its mounting bracket.

Step5: Install the new module and secure it in the same position.

Step6: Reconnect all wires firmly, ensuring proper grounding.

Step7: Restore power and gas, then test ignition sequence for proper spark and burner lighting
