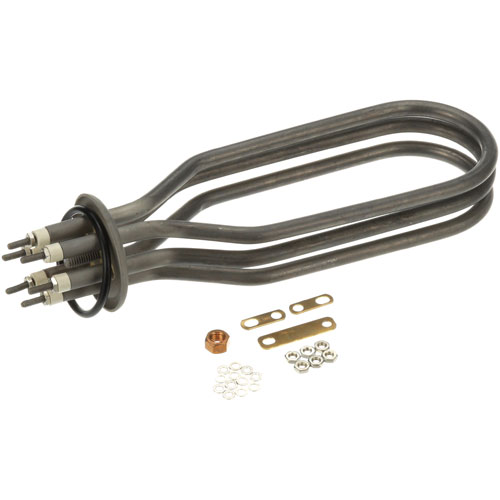

Hobart 277983-7 Immersion Element W/3" Flange Round Rubber Gasket 5000/7200W 200/240V 3PH

SKU: 277983-7 1-277983-7 Brand:
Hobart
Availability:
In Stock
(0)
$227.95 Price reduced from $351.24
Save $123.29
Have a Question? +1 (866) 863-0907

Specifications:

  • Immersion Element, [ 200/240V 5000/7200W 3Ph ]
  • [ 3" Round Flange~
  • 10-3/4" Long Inside ]
  • [Terminals {Screw 10-32 },
  • Comes With 3" Round Rubber Gasket # 32-1134
  • Has Threaded Stud In Center.
  • Hobart Dishwasher Am-14, Am-14C

Description

The Hobart 277983-7 Immersion Element is a heat-producing part that transforms electrical energy into heat when a current is sent through the element. It is installed in the tank where it is immersed in water or liquid to give controlled heating. This element of immersion is installed in compatible equipment with a 3" Flange round rubber gasket to close the flange. It has a power range of 5000 to 7200 watts and is intended to work with three-phase 200/240-volt electrical systems. The component assists in heating processes of commercial dishmachines or kettles.

Dimensions:

  • Weight: 4.3 lbs
  • Length: 16.5 in
  • Height: 4.5 in
  • Width: 7 in

HOBART:

00-119078-00007 00-119078-7 00-277983-2 00-277983-7 119078-7 277983-2

Step1: Disconnect power and verify lockout/tagout to ensure electrical isolation before servicing.

Step2: Drain tank and allow unit to cool completely before handling components.

Step3: Remove old element and gasket, then clean flange surface thoroughly.

Step4: Position new gasket and insert immersion element, align flange carefully.

Step5: Secure bolts evenly and tighten to specification using proper torque.

Step6: Refill system, restore power, and check for leaks during startup.

  • What maintenance is required for the Hobart 277983-7 Immersion Element?

    Regularly inspect the immersion element for scale buildup, corrosion, or damage. Clean deposits to ensure efficient heat transfer and check gasket integrity to prevent leaks. Tighten connections and verify electrical safety before use to avoid operational hazards.

  • What are common issues with the Hobart 277983-7 Immersion Element?

    • Heating element failure or burnout.
    • Mineral scale buildup reducing efficiency.
    • Leakage due to worn or damaged gasket.
    • Electrical connection faults or loose wiring.
    • Inconsistent heating or slow temperature response.
